Backup Washer

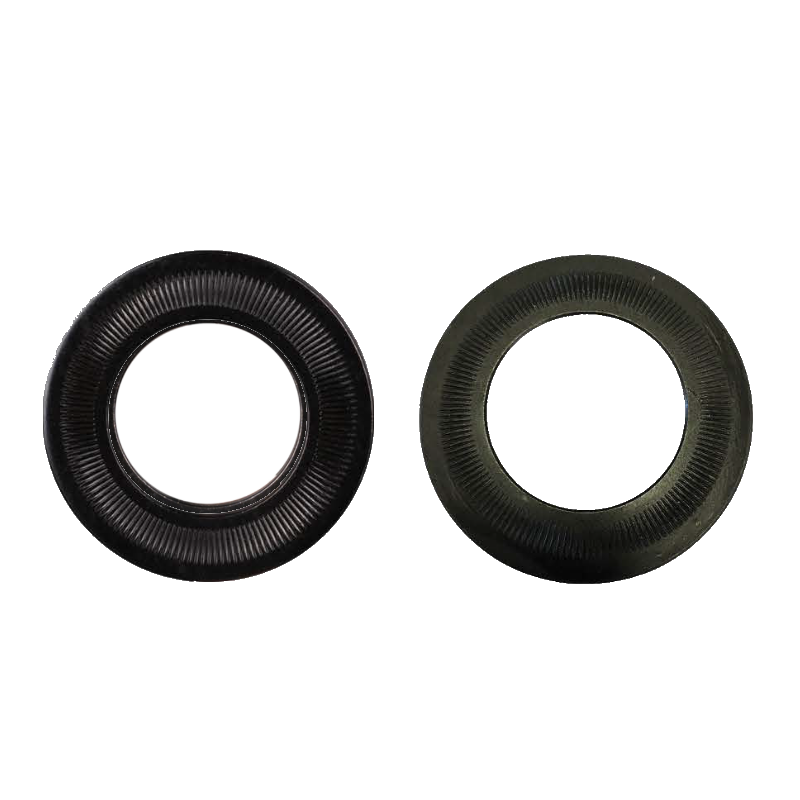

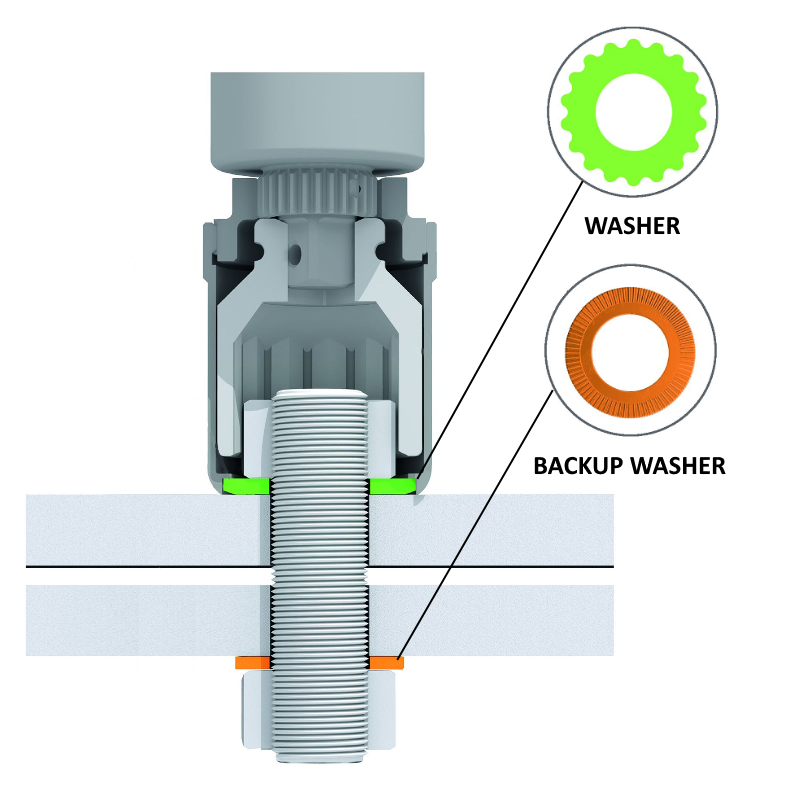

The HYTORC Backup Washer is a comprehensive add-on eliminating completely the need of separate backup wrenches during bolting. The surface design locks the fastener strictly to the surface and prevents the nut from rotating during work. The HYTORC fasteners series also includes innovative HYTORC Washers which allow counter-arm-free working and significantly improve the speed and safety of joint work.

  • Reusable and sustainable solution
  • Only a small additional cost
  • Current bolts and nuts can be used with the HYTORC Washers
  • Available in bolt sizes M16-M150

Description



Backup Washer
Bolt Size (M) Hex Size (mm) Drive Item d1 (mm) d4 (mm) h (mm)
M20 30 3/4″ ZBW-M20 21,1 34,6 3,3
M22 32 3/4″ ZBW-M22 23,1 36,8 3,3
M24 36 3/4″ ZBW-M24 25,3 41,9 4
M27 41 3/4″ ZBW-M27 28,7 47,5 4
M30 46 3/4″ ZBW102-M30 31,4 53,1 4,8
M33 50 3/4″ ZBW104-M33 34,2 58,6 4,8
M36 55 3/4″ ZBW106-M36 37,9 64,2 4,8
M39 60 3/4″ ZBW108-M39 40,4 69,6 4,8
M27 41 1″ ZBW-M27 28,7 47,5 4
M30 46 1″ ZBW102-M30 31,4 53,1 4,8
M33 50 1″ ZBW104-M33 34,2 58,6 4,8
M36 55 1″ ZBW106-M36 37,9 64,2 4,8
M39 60 1″ ZBW108-M39 40,4 69,6 4,8
M42 65 1″ ZBW110-M42 43,3 75,2 6,2
M45 70 1″ ZBW112-M45 46,2 80,6 6,2
M48 75 1″ ZBW114-M48 50,1 86,2 6,2
M52 80 1″ ZBW200-M52 54,1 91,6 6,2
M39 60 1 1/2″ ZBW108-M39 40,4 69,6 4,8
M42 65 1 1/2″ ZBW110-M42 43,3 75,2 6,2
M45 70 1 1/2″ ZBW112-M45 46,2 80,6 6,2
M48 75 1 1/2″ ZBW114-M48 50,1 86,2 6,2
M52 80 1 1/2″ ZBW200-M52 54,1 91,6 6,2
M56 85 1 1/2″ ZBW204-M56 59,3 104,6 7,6
M64 95 1 1/2″ ZBW208-M64 67,5 114,3 8,5
M72 105 1 1/2″ ZBW-M72 74 125 8,5
M80 115 1 1/2″ ZBW-M80 82 133,4 10,3
Washer Driver
Item ØA (mm) ØB (mm) C (mm) Drive
DZAK-M20-M30X-NHP 58,5 48,5 76 3/4″
DZAK-012-104X 58,5 51,8 80,6 3/4″
DZAK-014-107X 58,5 56 78,5 3/4″
DZAK-100-110X 63,5 61 88,9 3/4″
DZAK-102-113X 71,3 68,7 93,9 3/4″
DZAK-104-200X 78,5 76 95,8 3/4″
DZAK-106-203X 84,5 82 104,6 3/4″
DZAK-108-206X 90 87 105,7 3/4″
DZAL-100-110X 71,2 63,5 95,2 1″
DZAL-102-113X 71,2 69,9 99,8 1″
DZAL-104-200X 78,5 76 110 1″
DZAL-106-203X 85 82 106,8 1″
DZAL-108-206X 89,5 87,3 116,8 1″
DZAL-110-209X 99,3 94 132,3 1″
DZAL-112-212X 103,7 99,1 133,6 1″
DZAL-114-215X 112,9 107 134,5 1″
DZAL-200-302X 116,2 113 143,9 1″
DZAM-108-206X 105,2 88,9 132,7 1 1/2″
DZAM-110-209X 101,6 101,6 136 1 1/2″
DZAM-112-212X 107,1 107,1 135,3 1 1/2″
DZAM-114-215X 112 112 138,9 1 1/2″
DZAM-200-302X 121 121 146,1 1 1/2″
DZAM-204-308X 133 133 151,1 1 1/2″
DZAM-208-314X 144 144 164,7 1 1/2″
DZAM-212-402X 155 155 172,4 1 1/2″
DZAM-300-410X 166 166 183,6 1 1/2″
