Equalizer

Secure-Grip Flange Spreaders

The Equalizer Secure-Grip Flange Spreader tools have been developed to assist in the removal of wafer/butterfly valves, spades/spacers or gaskets from large flange joints. The span of the tool is longer than a standard Secure-Grip Flange Spreader and is adjustable to enable the tool to operate in a range of situations. By utilizing the supplied extensions and adjusting the length of the tension rod, the tools can be reconfigured to suit a huge range of flange joint thicknesses, from 0 to 550 mm. Secure-Grip Flange Spreaders are available as mechanical and hydraulic model sets, which include:

  • Torque wrench (mechanical models)
  • Hydraulic cylinder and hand pump (hydraulic models)
  • Safety block and collets
  • Carry case
  • All necessary connectors
Category:

Description



Secure-Grip Flange Spreaders

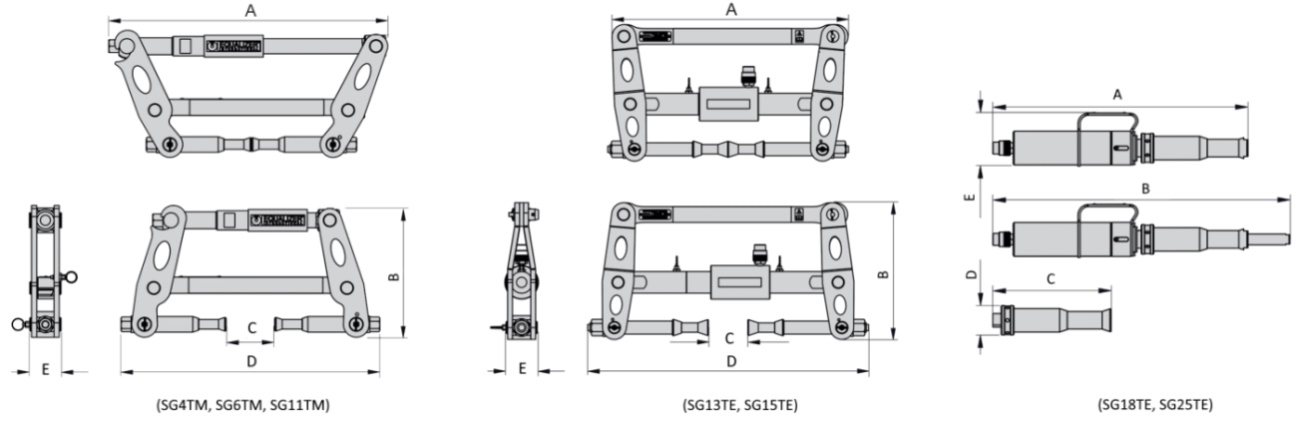

Item Power Source Capacity (tn) Bolt-Hole Sizes (mm) A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
SG4TM Mechanical 3,7 17,5-23,5 398 190 75 385 48 4,5
SG6TM Mechanical 6 24-30 398 190 75 385 48 7,5
SG11TM Mechanical 11 30-39 398 190 75 385 48 10,5
SG13TE Hydraulic 13 38-49 516 314 115 630 72 21,5
SG15TE Hydraulic 15 47,5-62 516 314 115 630 72 26
SG18TE Hydraulic 18 59,5-75 618 718 282 75 126 14
SG25TE Hydraulic 25 75-108 618 718 282 75 126 24

Brand

Equalizer

Equalizer

Equalizer is a tool manufacturer focusing on the alignment and spreading of flange joints. For almost 20 years, Equalizer's patented, award winning tools have been addressing the challenges of flange alignment, flange spreading and flange pulling. The tools bring significant benefits, in terms of safety, efficiency, ease of use and realizable time and therefore cost savings for those undertaking any form of flange maintenance activity.  Equalizer flange maintenance tools joined the Enerpac portfolio in 2019.
