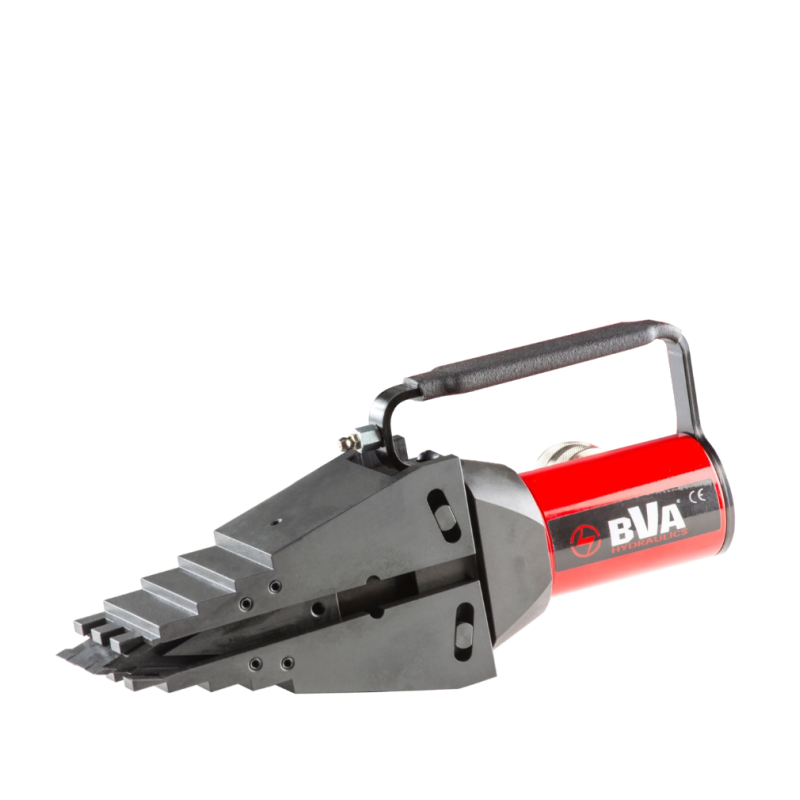

Mechanical and Hydraulic Flange Spreaders

BVA Flange Spreaders are an efficient and easy-to-use solution for alignment work in industrial, maintenance and construction sites. Friction-free, smooth and parallel wedge movement avoid spreading arm failure and flange damage and eliminates the risk of slipping out of joint with full loading. Hydraulic and mechanical spreads can be equipped with stepped blocks, which increase the wedge opening up to 80 mm.

  • Requires tiny access gap of only 6 mm
  • Low maintenance due to few moving parts
  • Recommended BVA Pumps for hydraulic model: P350, P570FP, PA600



Mechanical and Hydraulic Flange Spreaders

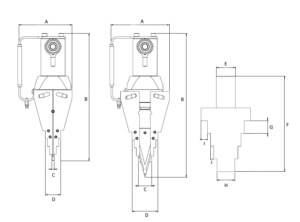

Item Power Source Capacity (tn) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) J (mm) Weight (kg)
HFSS14 Hydraulic 14 125,5 – 138 300 – 340 6 – 31 36 – 61 30 150 20 20 10 5 10
MFSS08 Mechanical 8 30 150 20 20 10 5 9,4


BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

Product Sheet

Product Sheet (in Finnish) [PDF]
