DC Controlled Screwdrivers

DOGA’s brushless electric screwdrivers and spindles are designed according to the highest standards of precision, ergonomics and robustness. Assembled around maintenance free brushless motors, all tools offer standard speed and acceleration settings. In addition, depending on the model, the screwdrivers include soft start/stop functions, angle and time functions as well as remote operation options.

  • STANDARD series: Features soft stop clutch and digital speed setting
  • MICRO TORQUE series: Features soft start clutch and digital speed setting
  • SOFT STOP series: Built-in special clutch mechanism providing soft shut-off to protect fragile parts
  • TIMER & AUTOREVERSE series: Fasten at preset angle/time, automatic reverse/ forward, stop sequence

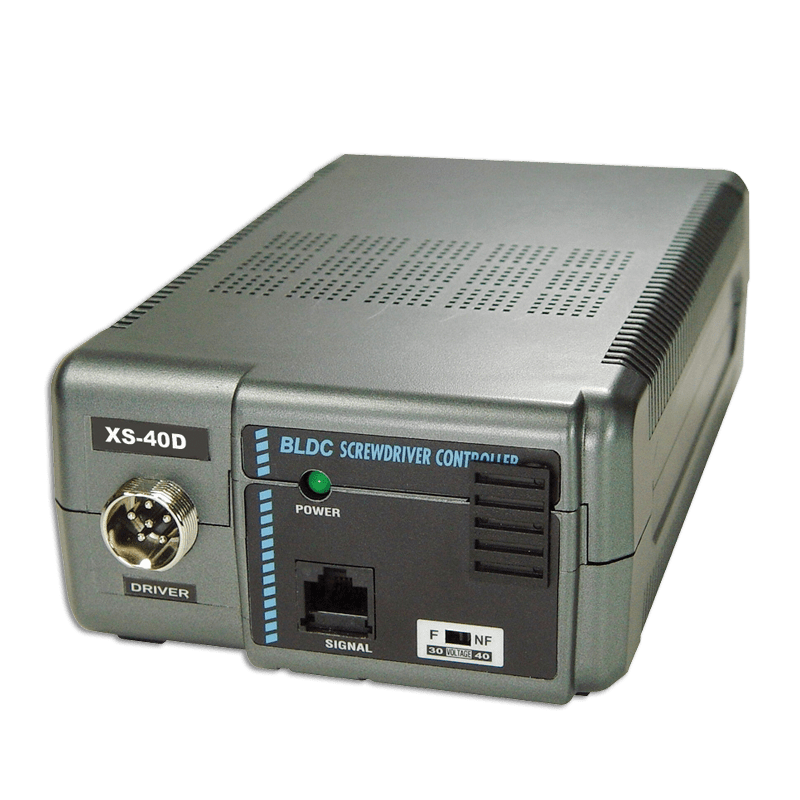

  • FIXTURE SPINDLES series: For automation XS-40D controller required
  • GX BT series: High torque/speed with built-in speed and soft start selector



More from DOGA >>

Category:

Description

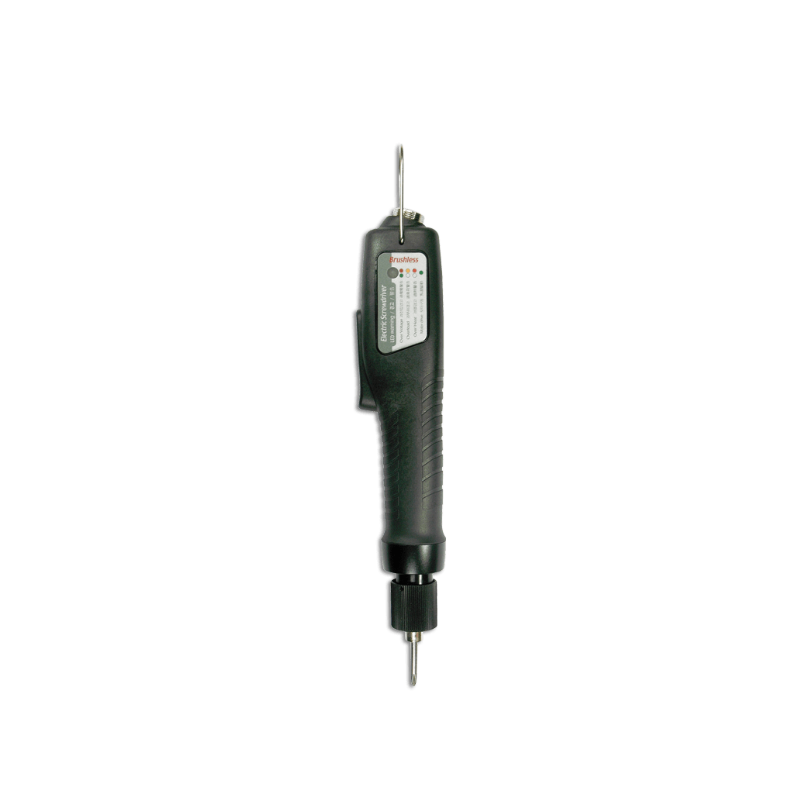

MICRO TORQUE series – GX
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GX 035 ESD 0,02 – 0,34 300 – 1 100 lever Halfmoon 4 mm 0,24 P100446
GX 045 ESD 0,04 – 0,45 300 – 700 lever Halfmoon 4 mm 0,24 P100270

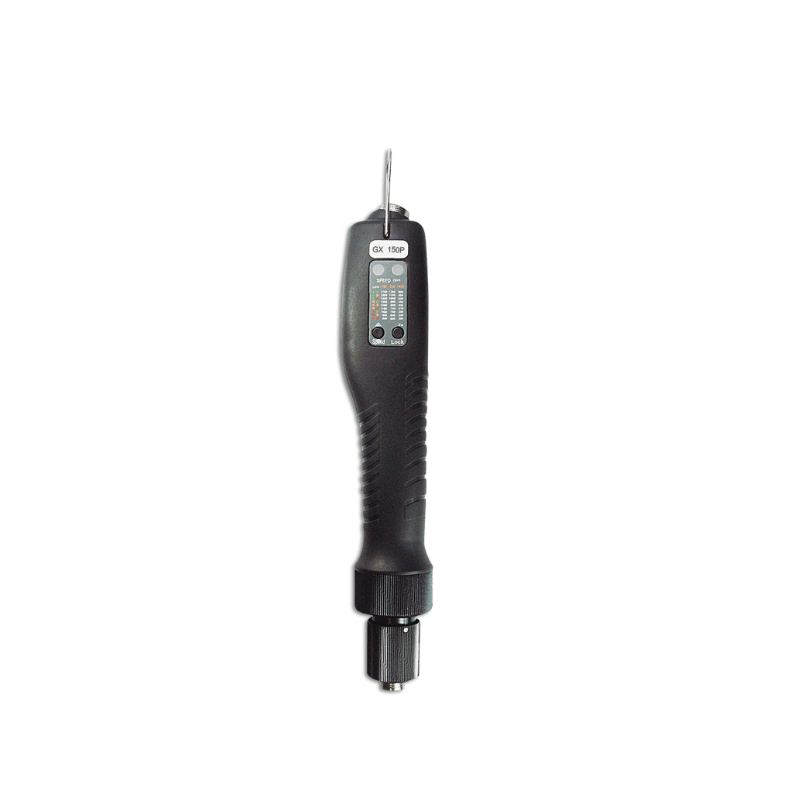

STANDARD series – GX
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GX 80 ESD V2 0,09 – 0,8 450 – 1 000 lever 1/4″ QC 0,43 P100044
GX 120 ESD V2 0,2 – 1,2 300 – 700 lever 1/4″ QC 0,43 P100010
GX 80 P ESD V2 0,09 – 0,8 450 – 1 000 push-to-start 1/4″ QC 0,43 P100241
GX 120 P ESD V2 0,2 – 1,2 300 – 700 push-to-start 1/4″ QC 0,43 P100105
GX 150 ESD-H 0,3 – 1,47 800 – 1 700 lever 1/4″ QC 0,6 P100098
GX 220 ESD-H 0,6 – 2,15 600 – 1 200 lever 1/4″ QC 0,6 P100016
GX 450 ESD-H 1 – 4,41 300 – 600 lever 1/4″ QC 0,62 P100011
GX 150 P ESD-H 0,3 – 1,47 800 – 1 700 push-to-start 1/4″ QC 0,6 P100083
GX 220 P ESD-H 0,6 – 2,15 600 – 1 200 push-to-start 1/4″ QC 0,6 P100025
GX 450 P ESD-H 1 – 4,41 300 – 600 push-to-start 1/4″ QC 0,62 P100023

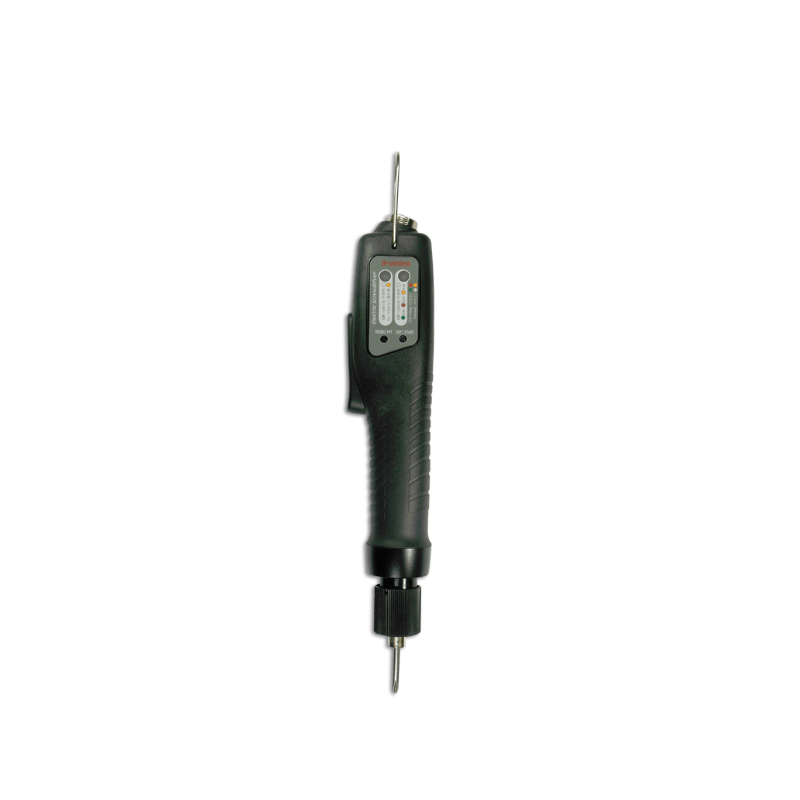

SOFT STOP series – GXS
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GXS 80 ESD V2 0,09 – 0,8 450 – 1 000 lever 1/4″ QC 0,43 P101709
GXS 120 ESD V2 0,2 – 1,2 300 – 700 lever 1/4″ QC 0,43 P100553
GXS 150 ESD-H 0,3 – 1,47 800 – 1 700 lever 1/4″ QC 0,6 P102475
GXS 220 ESD-H 0,6 – 2,15 600 – 1 200 lever 1/4″ QC 0,6 P101405

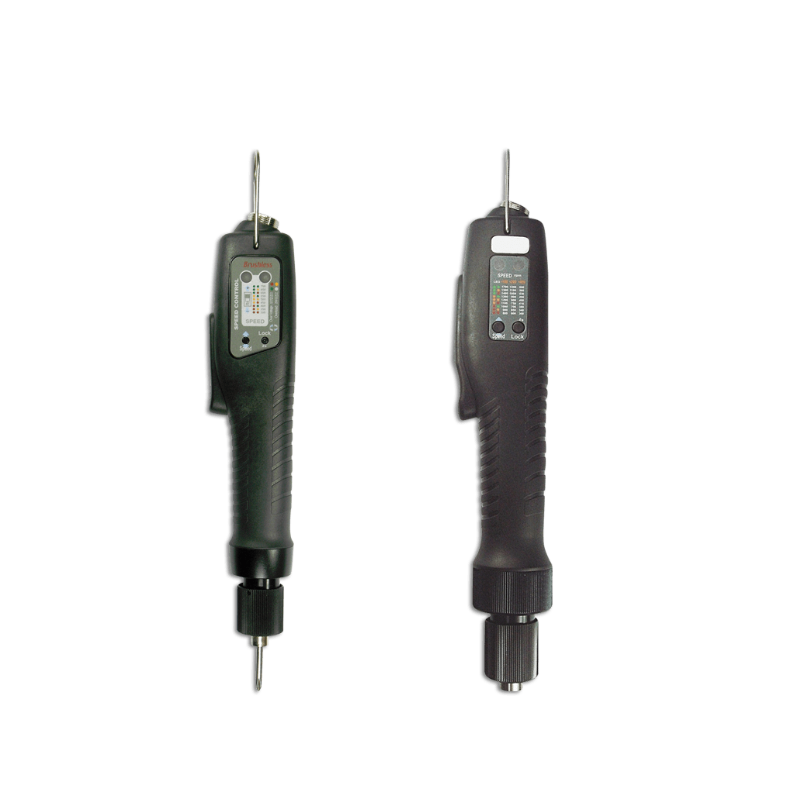

TIMER & AUTOREVERSE series – GXT
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GXT 80 ESD V2 0,09 – 0,8 450 – 1 000 lever 1/4″ QC 0,43 P103202
GXT 120 ESD V2 0,2 – 1,2 300 – 700 lever 1/4″ QC 0,43 P100367
GXT 150 ESD-H 0,3 – 1,47 800 – 1 700 lever 1/4″ QC 0,6 P103529
GXT 220 ESD-H 0,6 – 2,15 600 – 1 200 lever 1/4″ QC 0,6 P100968
GXT 450 ESD-H 1 – 4,41 300 – 600 lever 1/4″ QC 0,62 P100450

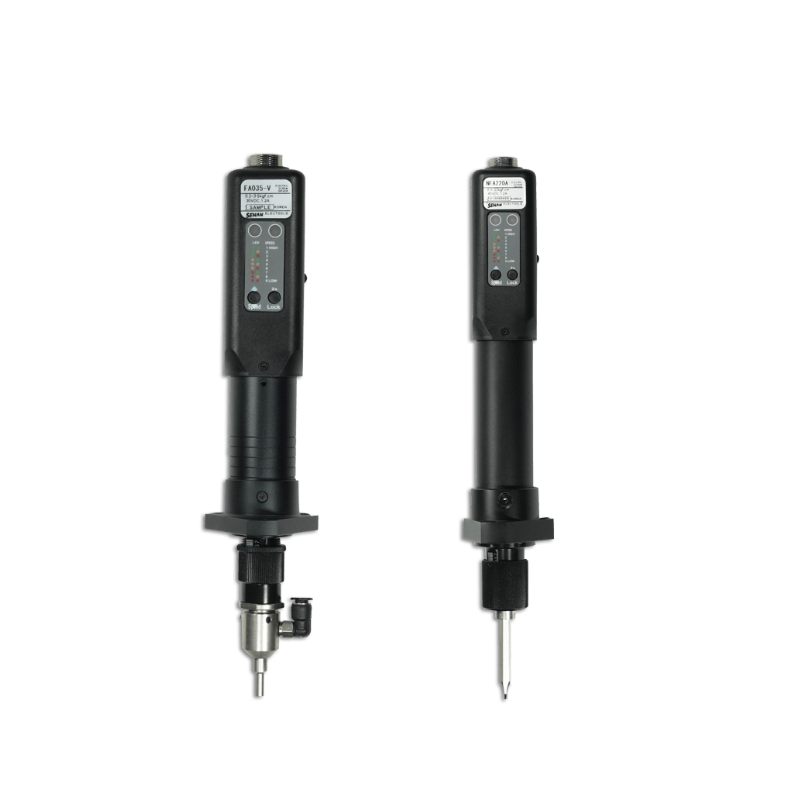

FIXTURE SPINDLES series – GXA
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GXA 035 ESD V2 0,03 – 0,35 300 – 1 100 remote Halfmoon 4 mm 0,45 P104972
GXA 045 ESD V2 0,04 – 0,45 300 – 700 remote Halfmoon 4 mm 0,45 P167806
GXA 080 ESD V2 0,1 – 0,8 450 – 1 000 remote 1/4″ QC 0,45 P103207
GXA 120 ESD V2 0,2 – 1,2 300 – 700 remote 1/4″ QC 0,45 P101624
GXA 150-H 0,3 – 1,47 800 – 1 700 remote 1/4″ QC 0,72 P102506
GXA 220-H 0,6 – 2,15 600 – 1 200 remote 1/4″ QC 0,72 P101535
GXA 450-H 1 – 4,41 300 – 600 remote 1/4″ QC 0,74 P100787
GXA 150P-H 0,3 – 1,47 800 – 1 700 push-to-start 1/4″ QC 0,79 P109082
GXA 220P-H 0,6 – 2,15 600 – 1 200 push-to-start 1/4″ QC 0,79 P104971
GXA 450P-H 1 – 4,41 300 – 600 push-to-start 1/4″ QC 0,74 P102923

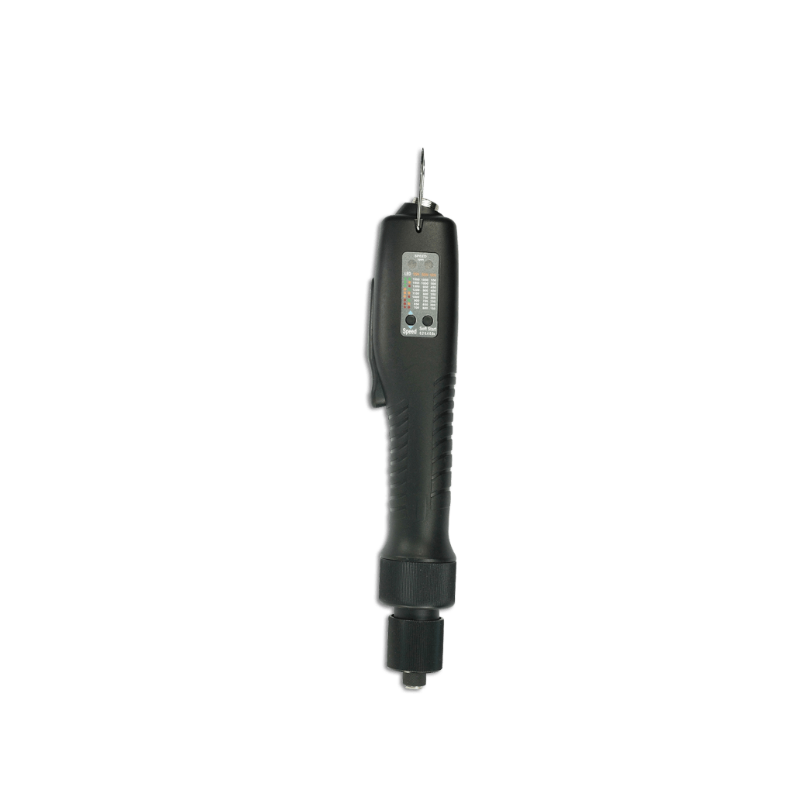

GX BT – series
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GX 35 BT ESD-G 1 – 3,4 700 – 1 500 lever 1/4″ QC 0,92 P101533
GX 50 BT ESD-G 2 – 4,9 600 – 1 050 lever 1/4″ QC 0,92 P101024
GX 100 BT ESD-G 4 – 9,8 150 – 550 lever 1/4″ QC 0,92 P100049
GA – Series
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GA 150 ESD 0,08 – 0,78 700 / 1 000 lever 1/4″ QC 0,31 P102902
GA 180 ESD 0,1 – 1,18 450 / 700 lever 1/4″ QC 0,31 P100350
GA 150 P ESD 0,08 – 0,78 700 / 1 000 push-to-start 1/4″ QC 0,31 P105867
GA 180 P ESD 0,1 – 1,18 450 / 700 push-to-start 1/4″ QC 0,31 P102021
GY – Series
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GY 35 ESD-G 1 – 3,4 500 – 1 500 lever 1/4″ QC 0,8 P101804
GY 50 ESD-G 2 – 4,9 400 – 1 100 lever 1/4″ QC 0,8 P101285
GY 100 ESD-G 4 – 9,8 250 – 500 lever 1/4″ QC 0,85 P100320
GY 35 P ESD-G 1 – 3,4 500 – 1 500 push-to-start 1/4″ QC 0,8 P101708
GY 50 P ESD-G 2 – 4,9 400 – 1 100 push-to-start 1/4″ QC 0,8 P102490
GYA 35-G V2 1 – 3,4 500 – 1 500 remote 1/4″ QC 0,95 P102320
GYA 50-G V2 2 – 4,9 400 – 1 100 remote 1/4″ QC 0,95 P102492
GYA 100-G V2 4 – 9,8 250 – 500 remote 1/4″ QC 0,95 P100489
PGY 35 pistol ESD-G 1 – 3,4 500 – 1 500 lever 1/4″ QC 0,9 P101621
PGY 50 pistol ESD-G 2 – 4,9 400 – 1 100 lever 1/4″ QC 0,9 P102025
PGY 100 pistol ESD-G 4 – 9,8 250 – 500 lever 1/4″ QC 0,95 P102683
PGY 35 T pistol Top Exit ESD-G 1 – 3,4 500 – 1 500 lever 1/4″ QC 0,9 P101800
PGY 50 T pistol Top Exit ESD-G 2 – 4,9 400 – 1 100 lever 1/4″ QC 0,9 P101627
PGY 100 T pistol Top Exit ESD-G 4 – 9,8 250 – 500 lever 1/4″ QC 0,95 P104377
GX FS – Series
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GX 60 FS ESD 0,1 – 0,6 1 550 lever 1/4″ QC 0,44 P109110
GX 80 FS ESD 0,2 – 0,8 1 250 lever 1/4″ QC 0,44 P103190
GX 120 FS ESD 0,3 – 1,2 1 000 lever 1/4″ QC 0,44 P100936
GX 180 FS ESD 0,4 – 1,8 700 lever 1/4″ QC 0,44 P100242
GX 60 FSP ESD 0,1 – 0,6 1 550 push-to-start 1/4″ QC 0,44 P107077
GX 80 FSP ESD 0,2 – 0,8 1 250 push-to-start 1/4″ QC 0,44 P104980
GX 120 FSP ESD 0,3 – 1,2 1 000 push-to-start 1/4″ QC 0,44 P102302
GX 180 FSP ESD 0,4 – 1,8 700 push-to-start 1/4″ QC 0,44 P101230
DO – Series
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
DO 250 ESD 0,2 – 2,45 630 / 1 050 lever 1/4″ QC 0,72 P101465
DO 350 ESD 0,2 – 3,43 460 / 750 lever 1/4″ QC 0,72 P101184
DO 450 ESD 0,3 – 4,41 330 / 550 lever 1/4″ QC 0,72 P100817
DO 250 P ESD 0,2 – 2,45 630 / 1 050 push-to-start 1/4″ QC 0,72 P102698
DO 350 P ESD 0,2- 3,43 460 / 750 push-to-start 1/4″ QC 0,72 P103182
DO 450 P ESD 0,3 – 4,41 330 / 550 push-to-start 1/4″ QC 0,72 P101788
DXD – Series
Model Torque Range (Nm) Free Speed (rpm) Starting System Drive Weight (kg) Item
GXD 180 ESD 0,4 – 1,75 1 400 lever 1/4″ QC 0,97 P205299
GXD 250 ESD 0,7 – 2,45 1 100 lever 1/4″ QC 0,97 P205301
GXD 180 P ESD 0,4 – 1,75 1 400 push-to-start 1/4″ QC 0,97 P205300
GXD 250 P ESD 0,7 – 2,45 1 100 push-to-start 1/4″ QC 0,97 P205302

Brand

DOGA

DOGA

French screwdriver manufacturer DOGA has more than 70 years of solid experience as a reliable partner for companies in the electronics industry. The company's advanced DC and current-controlled screwdrivers cover models from a few newton meters to very small options of even 0.04 Nm. In addition to its versatile range of screwdrivers and torque arms, DOGA is also particularly valued for its first-class and customer-oriented service. Visit manufacturer's website >>
