DC Controlled Screwdrivers

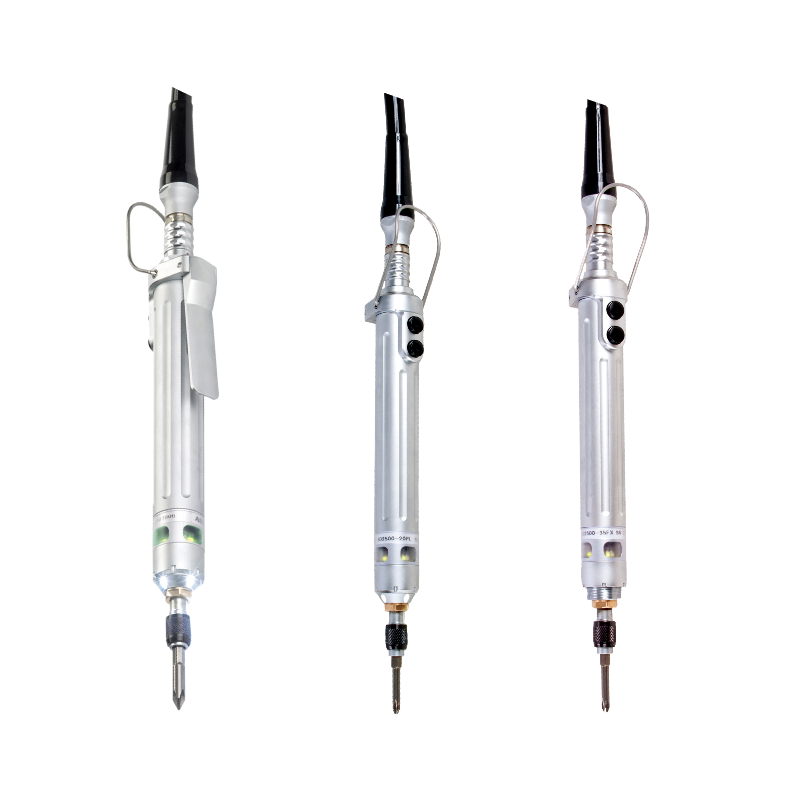

SD2500 screwdrivers and nutrunners are premium quality transducerized DC electric tools. Inline screwdrivers are available with push, lever or remote start operation and 1/4 in. hex drive. Fixture mount models with threaded end are available in each torque range for automated or robotic applications. Right angle nutrunners are available with either 1/4 in. hex or 1/4 in. square drive. Screwdrivers and nutrunners are controlled with simple and intuitive ASG X-PAQ controller.

  • Transducerized torque and angle control with compact, lightweight, brushless motor for unparalleled clean, quiet and accurate operation

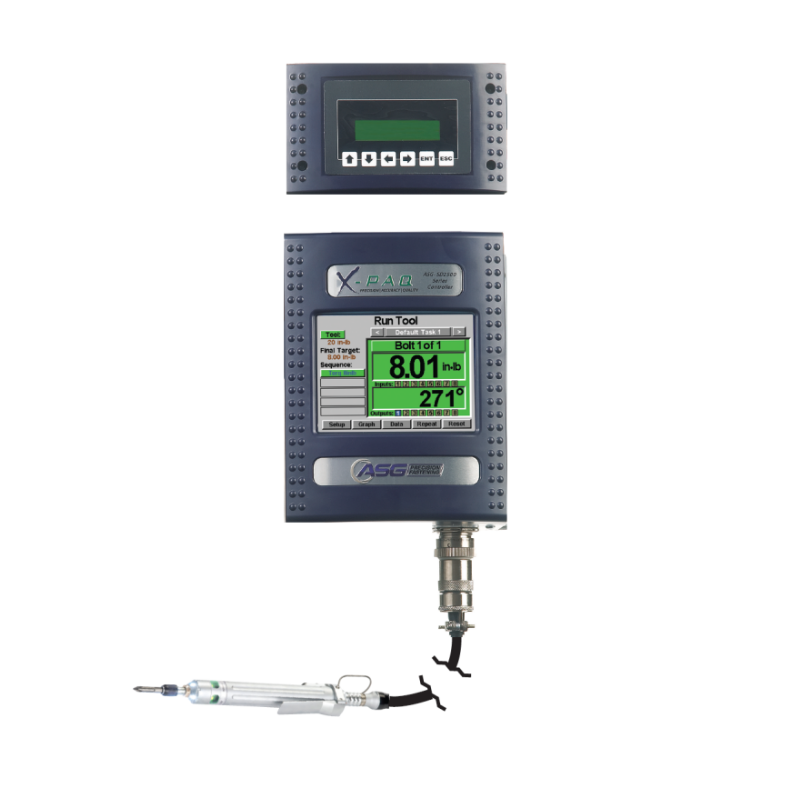

  • Sleek aluminum body with high intensity LED tool indicator lights Controller features a large, color touch screen for intuitive setup, eliminating the need for external software
  • 32 task storage keys for multiple assembly setups with 8 available parameters within each task
  • Torque and angle control monitoring with color coded results
  • Data collection and rundown graphing
  • Programmable I/O for process control
  • Controller dimensions: 180 mm x 230 mm x 140 mm, weight 4,1 kg

Description



DC Controlled Screwdrivers
Item Model Torque Range (Nm) Max. Free Speed (rpm) Length (mm) Weight (kg) Drive
ASG-SD2500-10PL Push/Lever Start Combination, Inline 0,1 – 1,1 1 700 240,3 0,46 1/4” QC
ASG-SD2500-10PS Push-to-start, Inline 0,1 – 1,1 1 700 240,3 0,46 1/4” QC
ASG-SD2500-10FX Push-to-start, Inline Fixture Mount 0,1 – 1,1 1 700 240,3 0,46 1/4” QC
ASG-SD2500-10RP Lever Start, Angle 0,1 – 1,1 1 700 254 0,57 1/4” SQ
ASG-SD2500-10RQ Lever Start, Angle 0,1 – 1,1 1 700 254 0,57 1/4” QC
ASG-SD2500-20PL Push/Lever Start Combination, Inline 0,2 – 2,3 1 100 240,3 0,46 1/4” QC
ASG-SD2500-20PS Push-to-start, Inline 0,2 – 2,3 1 100 240,3 0,46 1/4” QC
ASG-SD2500-20FX Push-to-start, Inline Fixture Mount 0,2 – 2,3 1 100 240,3 0,46 1/4” QC
ASG-SD2500-20RP Lever Start, Angle 0,2 – 2,3 1 100 254 0,57 1/4” SQ
ASG-SD2500-20RQ Lever Start, Angle 0,2 – 2,3 1 100 254 0,57 1/4” QC
ASG-SD2500-35PL Push/Lever Start Combination, Inline 0,4 – 3,9 800 240,3 0,46 1/4″ QC
ASG-SD2500-35PS Push-to-start, Inline 0,4 – 3,9 800 240,3 0,46 1/4” QC
ASG-SD2500-35FX Push-to-start, Inline Fixture Mount 0,4 – 3,9 800 240,3 0,46 1/4” QC
ASG-SD2500-35RP Lever Start, Angle 0,4 – 3,9 800 254 0,57 1/4” SQ
ASG-SD2500-35RQ Lever Start, Angle 0,4 – 3,9 800 254 0,57 1/4” QC
ASG-SD2500-50PL Push/Lever Start Combination, Inline 0,6 – 5,6 500 246,6 0,49 1/4” QC
ASG-SD2500-50PS Push-to-start, Inline 0,6 – 5,6 500 246,6 0,49 1/4” QC
ASG-SD2500-50FX Push-to-start, Inline Fixture Mount 0,6 – 5,6 500 246,6 0,49 1/4” QC
ASG-SD2500-50RP Lever Start, Angle 0,6 – 5,6 500 259,1 0,61 1/4” SQ
ASG-SD2500-50RQ Lever Start, Angle 0,6 – 5,6 500 259,1 0,61 1/4” QC



Brand

ASG

ASG Jergens

Founded in 1976, ASG is a US tool supplier specializing in bolting technology and automation solutions. Known as an innovator of assembly equipment for the electronics industry, ASG offers a full range of both manual and automated solutions for different production and assembly needs. Visit manufacturer's website >>
