Positioning Control System

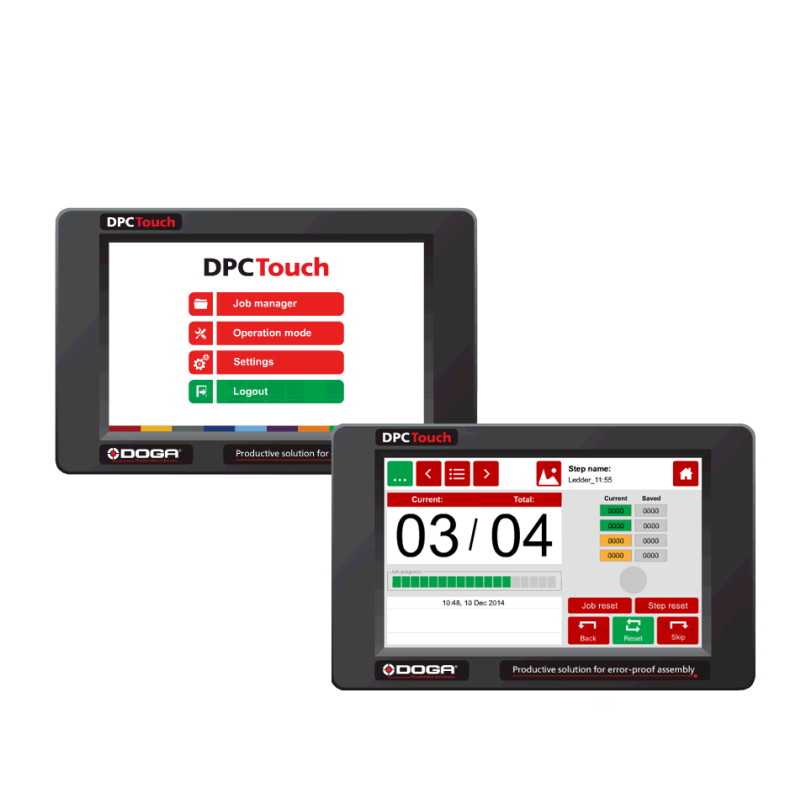

To guarantee quality production, an assembly process needs to be counted, checked, ordered and displayed. DOGA’s sequence management tools are specially designed to fulfill all applications. DPC Touch, the assembly sequence management interface for positioning control, is the ideal tool for stand-alone work stations. Once a sequence is selected, the operator views the process step by step, screw by screw and is led by the instructions on the screen. This eliminates the risk of missed screws or incorrect torque values.

Power supply included
Improve your manufacturing quality with zero fault processes.
RS232 connection for barcodes
Both for electric and pneumatic screwdrivers
Interface to 12 inputs & 12 outputs
7” touch screen

Description

STANDARD EQUIPMENT
Descripiton	Code
DOGA POSI-CONTROL – DPC Touch V2	4-1290026

Spare parts (included with standard equipment)
Descripiton	Code
Fixing plate	4-1290006
Mains plug adapter EU–UK	4-1291024
Mains plug adapter EU–US	4-1291023
I/O adapter cable, DB44 → DB25 + DB9	4-1290007
SD card protector	4-1290031

ACCESSORIES
Descripiton	Code
DPC Touch cable / DOGA GX, GY, DO, GA	4-1290008
DPC Touch cable / DOGA HD, SD	4-1290013
DPC Touch cable / DOGA MDC	4-1252006
DPC Touch cable / Stanley Alpha V (16 jobs)	4-5241051
DPC Touch cable / DOGA bit socket tray (BST)	4-1251213
DB9 cable, 3 m / free wire (3 inputs / 4 outputs)	4-5200542
DB25 cable, 3 m / free wire (12 inputs / 9 outputs)	4-5200770
DB44 cable, 3 m / free wire (12 inputs / 12 outputs)	4-1290009
I/O wiring box for DPC Touch, DB44, 3 m cable	4-1290011
Pressure switch box for DPC Touch	4-5200771
DS2208 scanner kit for 1D and 2D barcode reading	4-5000100
2 m straight USB cable, 2 m straight DB19 RS232 cable, 5.2 V power supply for RS232 cable	4-5000102
Holder, reading distance 1–35 cm, optical sensor resolution 640 pixels, reading on paper	4-5000104
Or screen, IP42, black, DPC TOUCH RS232 adapter for scanner	4-5234520
