CellClutch

Battery Torque Tool Series

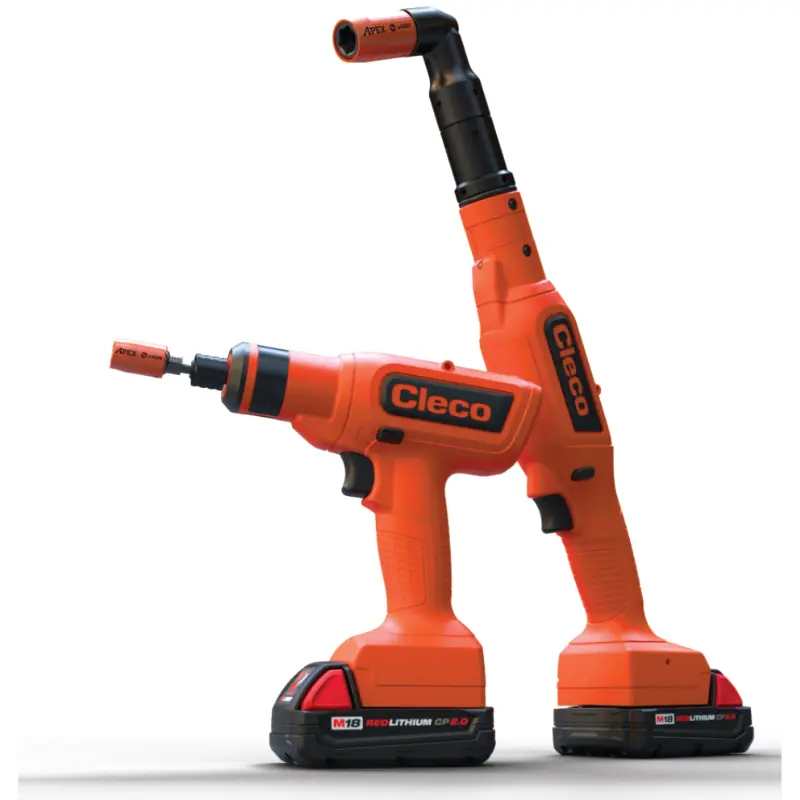

The CellClutch cordless screwdriver series is the latest innovation in cordless tools. Intelligent clutch-controlled screwdrivers offer a simple mechanical clutch, programmable tightening speed and batch counting. Work is enhanced by a built-in work light, an “ok / no ok” light and a colored light to indicate the batch counting situation.



More from Cleco >>

Description

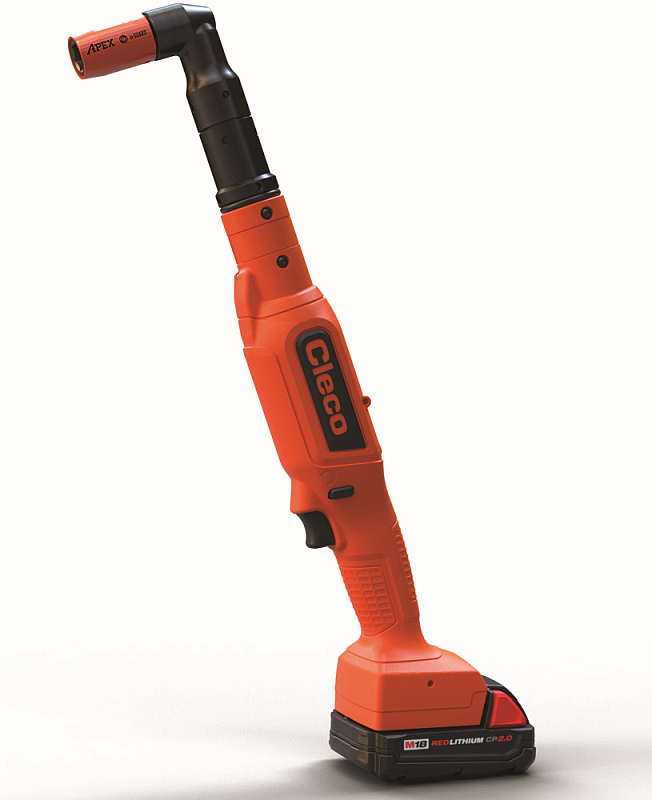

Angle models
Item Torque Range (Nm) Free Speed (rpm) Weight (kg)* Length (mm) Height (mm) Drive
CLBA083 2,2 – 8 92 – 915 1,5 453 76 3/8″ SQ
CLBA123 3,3 – 12 65 – 650 1,5 453 76 3/8″ SQ
CLBA203 8,3 – 21 36 – 360 1,8 493 76 3/8″ SQ
CLBA303 8,3 – 30 26 – 255 1,8 493 76 3/8″ SQ
CLBA403 15,1 – 41 19 – 185 1,9 514 76 3/8″ SQ
CLBA653 15,9 – 65 12 – 115 2 526 76 3/8″ SQ

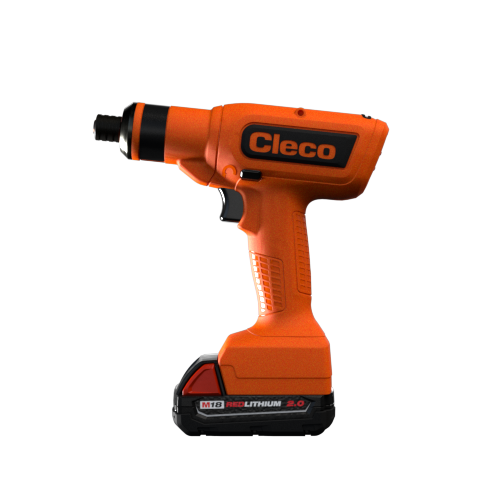

Pistol models
Item Torque Range (Nm) Free Speed (rpm) Weight (kg)* Length (mm) Height (mm) Drive
CLBP04Q 1,1 – 4 177 – 1 500 1,1 218 209 1/4″ QC
CLBP08Q 2,1 – 8 95 – 985 1,1 218 209 1/4″ QC
CLBP12Q 3,2 – 12 70 – 700 1,1 218 209 1/4″ QC
Accessories
Item Description
T50-1000497 18 V/2.0 Ah battery
T50-1000498 18 V/5.0 Ah battery
T50-1000506 18 V rapid charger
T50-1000508 18 V 6-bay charger
Lisävarusteet
Nimike Kuvaus
T50-1000497 18 V/2.0 Ah:n akku
T50-1000498 18 V/5.0 Ah:n akku
T50-1000506 18 V:n pikalaturi
T50-1000508 18 V:n 6-asemainen laturi
Scratch Cover
Item Compability
T50-1102302 Pistol models
T50-1102801 CLBA083, CLBA123
T50-1102802 CLBA203, CLBA303
T50-1102803 CLBA403
T50-1102805 CLBA603



*) Tool weight values do not include battery – 2 Ah battery weighs 0.43 kg and 5 Ah battery weighs 0.72 kg.

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>

Product Sheet

Product Sheet [PDF]
