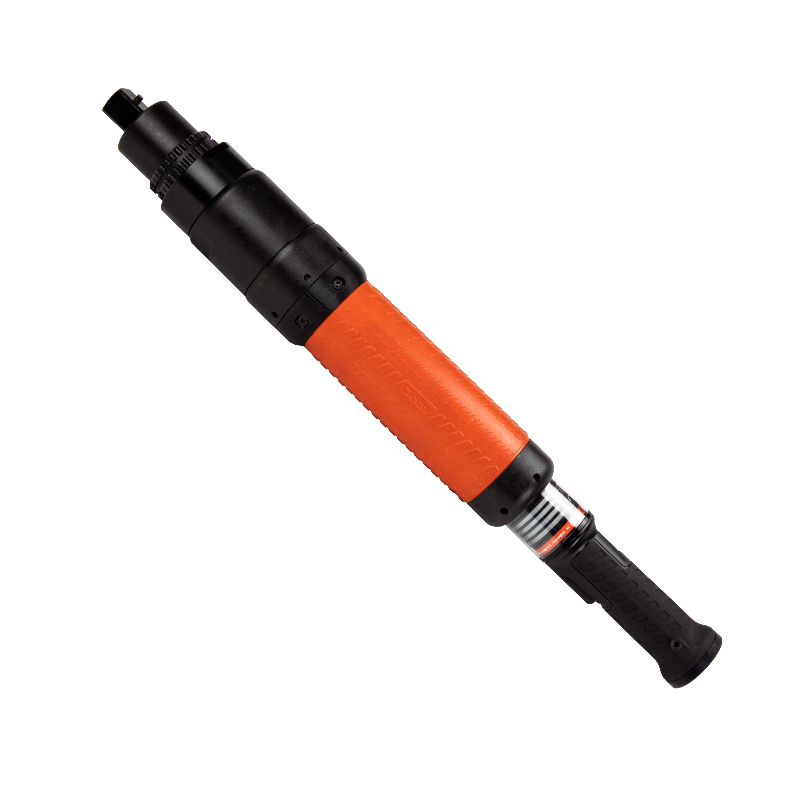

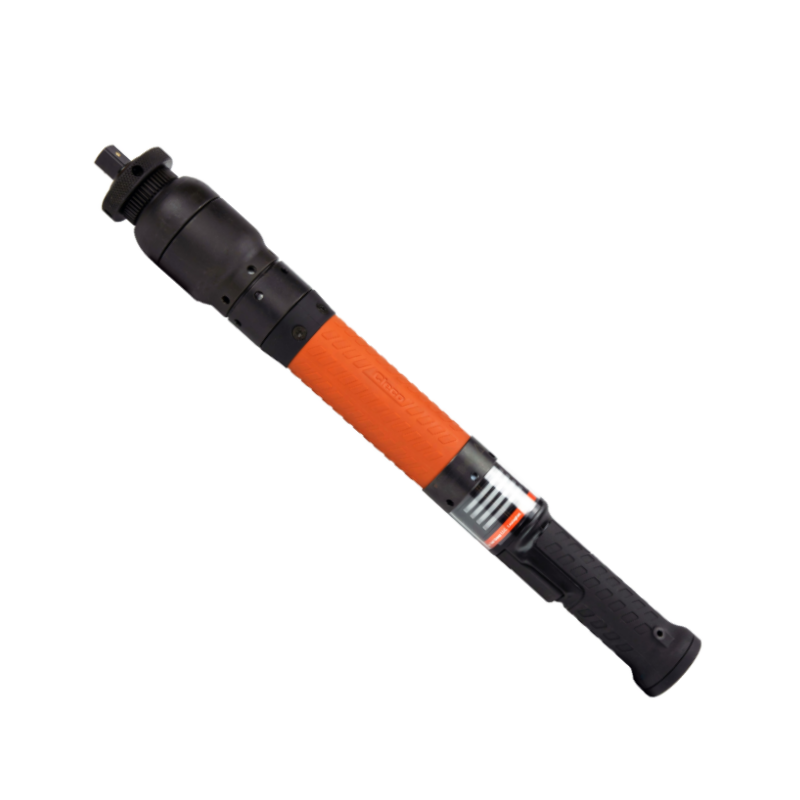

NeoTek In-Line Nutrunners

The Cleco NeoTek fastening system is the next generation of smart tool solutions. NeoTek exceeds the industry’s most demanding assembly requirements by combining over 50 years of experience with smart technology. NeoTek tools were engineered to provide 1 million cycles maintenance-free. NeoTek’s tool cable features an industry-first quarter turn twist-lock design, thus eliminating one of the leading causes of tool cable failure: damaged threads.

  • Accurate torque transducer
  • Lightweight, smooth body and cable design
  • 1 million cycles maintenance-free
  • Repeatability & Accuracy with 2.0 Cm/Cmk at +/- 7%
  • Configurable LED light rings
  • Tactile & Audible Operator Feedback
  • Programmable Multi-function Buttons



More from Cleco >>

Also remember the Cleco NeoTek Controllers.

Description

30-series
Item Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Side to Center (mm) Drive
30ESN05BD2 0,9 – 4,7 4 275 0,96 337 16,3 1/4” SQ
30ESN05BDQ 0,9 – 4,7 4 275 0,96 342 16,3 1/4” QC
30ESN12EAQ 3,9 – 11,6 1 650 1,06 361 16,3 1/4” QC
30ESN12FA3 3,9 – 11,6 1 650 1,06 357 16,3 3/8” SQ
30ESN19FB3 3,9 – 19 1 000 1,06 357 16,3 3/8” SQ
30ESN26FC3 15 – 26 750 1,06 357 16,3 3/8” SQ
50-series
Item Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Side to Center (mm) Drive
50ESN28FD3 5,6 – 28 2 125 1,35 399 16,3 3/8” SQ
50ESN43GD3 9 – 43 1 375 1,65 403 18,9 3/8” SQ
50ESN65HD4 14 – 66 900 1,9 435 22 1/2” SQ
50ESN85JD4 17 – 84 670 2 449 22 1/2” SQ
50ESN125KD4 25 – 123 455 2,4 460 28 1/2” SQ
70-series
Item Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Side to Center (mm) Drive
70ESN95ND6 23 – 93 1 325 5,2 566 33,1 3/4” SQ
70ESN130ND6 31 – 124 1 000 5,2 566 33,1 3/4” SQ
70ESN185ND6 46 – 184 680 5,2 566 33,1 3/4” SQ
70ESN245ND6 61 – 245 510 5,2 566 33,1 3/4” SQ
70ESN355SD8 89 – 354 335 7,6 610 38 1” SQ
70ESN475SD8 118 – 473 250 7,6 610 38 1” SQ
70ESN700SD8 173 – 700 170 7,6 610 38 1” SQ
70ESN850SD8 213 – 850 125 7,6 610 38 1” SQ
70ESN1500TA8T 425 – 1500 43 8,7 621 41 1” SQ
70ESN2000TA8T 775 – 2000 32 8,7 621 41 1” SQ
70ESN4000UA12MT 1250 – 4000 18 12,8 615 60 1 1/2” SQ

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>

Product Sheet

Product Sheet (in Finnish) [PDF]
