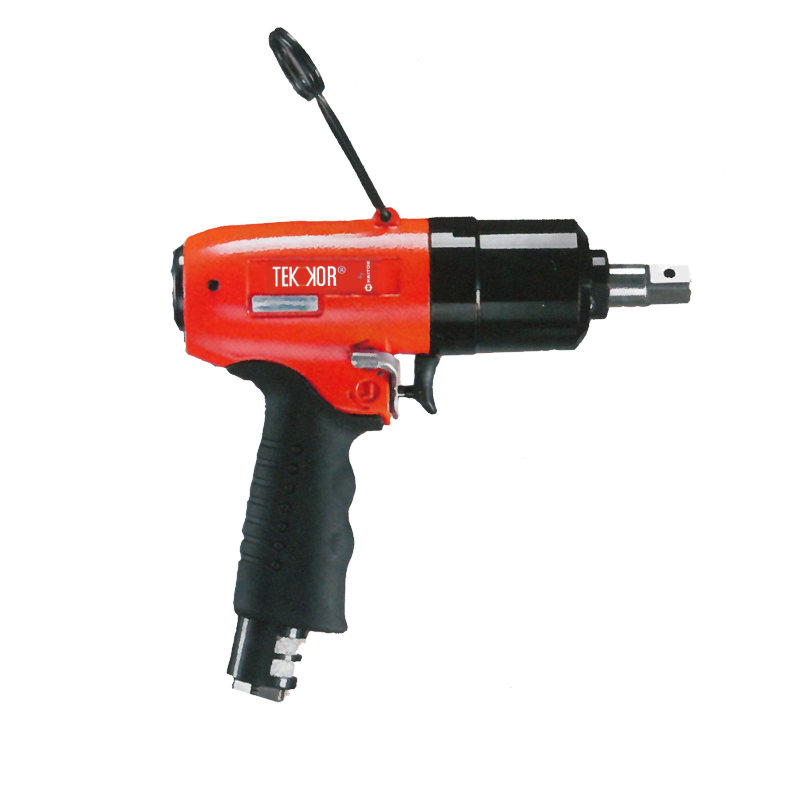

Impulse Guns

After a long-term development process, Haitor has released its own series of high-quality and cost-effective impulse wrenches. Reliable tools are ideal for professional use – the balanced and ergonomic models are both accurate and easy to use. A wide range of different pistol models covers a torque range of 5­­-450 Nm.

  • High speed tool for production environment – even 7 200 rouns per minute
  • Easy to set up
  • Service-free
  • High accuracy
  • Wide range of models and sizes ensure there is an optimal screwdriver for every situation
  • Low vibration level of <2,5 m/s2 in models below 120 Nm



More from Tekkor >>

Category:

Description

Impulse guns with auto shut-off
Item Drive Bolt Size Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Air Consumption (m3/min) Air Inlet NPT
TKR-IPQ-12S 1/4″ QC M6 5 – 13 4 600 0,89 163 0,25 1/4″
TKR-IPQ-18S 1/4″ QC M6 – M8 9 – 18 4 600 0,92 170 0,25 1/4″
TKR-IPQ-26S 1/4″ QC M8 13 – 26 7 200 0,92 170 0,35 1/4″
TKR-IPQ-30S 1/4″ QC M8 18 – 30 6 200 1 181 0,4 1/4″
TKR-IPQ-38S 1/4″ QC M8 – M10 23 – 38 4 800 1,08 192 0,43 1/4″
TKR-IPXQ-44S 1/4″ QC M8 – M10 26 – 44 5 200 1,08 192 0,43 1/4″
TKR-IPQ-47S 1/4″ QC M10 29 – 47 7 200 1,35 197 0,45 1/4″
TKR-IP6-12S 3/8″ SQ M6 6 – 13 4 600 0,89 167 0,25 1/4″
TKR-IP6-19S 3/8″ SQ M6 – M8 10 – 19 4 600 0,92 167 0,25 1/4″
TKR-IP6-27S 3/8″ SQ M8 14 – 28 7 200 0,92 167 0,35 1/4″
TKR-IP6-35S 3/8″ SQ M8 – M10 20 – 35 6 200 1 178 0,4 1/4″
TKR-IP6-45S 3/8″ SQ M10 27 – 45 4 800 1,08 189 0,43 1/4″
TKR-IP6-55S 3/8″ SQ M10 – M12 32 – 55 5 400 1,08 189 0,45 1/4″
TKR-IP6-57S 3/8″ SQ M10 – M12 34 – 57 7 200 1,35 194 0,45 1/4″
TKR-IP6-70S 3/8″ SQ M10 – M12 40 – 70 5 100 1,19 194 0,5 1/4″
TKR-IP8-72S 1/2″ SQ M10 – M12 40 – 70 5 100 1,25 200 0,5 1/4″
TKR-IP8-90S 1/2″ SQ M12 57 – 90 5 400 1,53 200 0,53 1/4″
TKR-IP8-120S 1/2″ SQ M12 – M14 75 – 120 5 300 1,87 209 0,53 1/4″
TKR-IP8-148S 1/2″ SQ M14 – M16 113 – 148 3 600 2,22 216 0,73 1/4″
TKR-IP12-210S 3/4″ SQ M16 145 – 210 3 700 3,05 238 0,73 1/4″
TKR-IP12-255S 3/4″ SQ M16 – M18 180 – 255 2 700 3,8 264 0,73 3/8″
TKR-IP12-450S 3/4″ SQ M18 230 – 450 2 500 5,1 288 1,38 3/8″
Impulse guns without auto shut-off
Item Drive Bolt Size Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Air Consumption (m3/min) Air Inlet NPT
TKR-IPQ-12 1/4″ QC M6 5 – 13 4 600 0,87 163 0,25 1/4″
TKR-IPXQ-12 1/4″ QC M6 5 – 13 4 600 0,72 137 0,25 1/4″
TKR-IPQ-18 1/4″ QC M6 – M8 9 – 18 4 600 0,9 170 0,25 1/4″
TKR-IPXQ-18 1/4″ QC M6 – M8 9 – 18 4 600 0,74 144 0,25 1/4″
TKR-IPQ-26 1/4″ QC M8 13 – 26 7 200 0,9 170 0,35 1/4″
TKR-IPXQ-26 1/4″ QC M8 13 – 26 7 200 0,74 144 0,35 1/4″
TKR-IPQ-30 1/4″ QC M8 18 – 30 6 200 0,97 181 0,4 1/4″
TKR-IPXQ-30 1/4″ QC M8 18 – 30 6 200 0,8 155 0,4 1/4″
TKR-IPQ-38 1/4″ QC M8 – M10 23 – 38 4 800 1,05 192 0,43 1/4″
TKR-IPXQ-44 1/4″ QC M8 – M10 26 -44 5 200 1,05 192 0,43 1/4″
TKR-IPQ-47 1/4″ QC M10 29 – 47 7 200 1,33 197 0,45 1/4″
TKR-IP6-12 3/8″ SQ M6 6 – 13 4 600 0,87 167 0,25 1/4″
TKR-IPX6-12 3/8″ SQ M6 6 – 13 4 600 0,72 141 0,25 1/4″
TKR-IP6-19 3/8″ SQ M6 – M8 10 – 19 4 600 0,9 167 0,25 1/4″
TKR-IPX6-19 3/8″ SQ M6 – M8 10 – 16 4 600 0,74 141 0,25 1/4″
TKR-IP6-27 3/8″ SQ M8 14 – 28 7 200 0,9 167 0,35 1/4″
TKR-IPX6-27 3/8″ SQ M8 14 – 29 7 200 0,74 141 0,35 1/4″
TKR-IP6-35 3/8″ SQ M8 – M10 20 – 35 6 200 0,97 178 0,4 1/4″
TKR-IPX6-35 3/8″ SQ M8 – M10 20 – 35 6 200 0,8 152 0,4 1/4″
TKR-IP6-45 3/8″ SQ M10 27 – 45 4 800 1,05 189 0,43 1/4″
TKR-IP6-55 3/8″ SQ M10 – M12 32 – 55 5 400 1,05 189 0,45 1/4″
TKR-IP6-57 3/8″ SQ M10 – M12 34 – 57 7 200 1,33 194 0,45 1/4″
TKR-IP6-70 3/8″ SQ M10 – M12 40 – 70 5 100 1,19 194 0,5 1/4″
TKR-IP8-72 1/2″ SQ M10 – M12 40 – 70 5 100 1,25 200 0,5 1/4″
TKR-IP8-90 1/2″ SQ M12 57 – 90 5 400 1,53 200 0,53 1/4″
TKR-IP8-120 1/2″ SQ M12 – M14 75 – 120 5 300 1,85 209 0,53 1/4″
TKR-IP8-148 1/2″ SQ M14 – M16 113 – 148 3 600 2,22 216 0,73 1/4″
TKR-IP12-210 3/4″ SQ M16 145 – 210 3 700 3,05 238 0,73 1/4″
TKR-IP12-255 3/4″ SQ M16 – M18 180 – 255 2 700 3,8 264 0,73 3/8″
TKR-IP12-385 3/4″ SQ M18 – M20 260 – 385 3 000 4,2 251 1,38 3/8″

Brand

Tekkor

Tekkor

Haitor's own brand Tekkor is our contract manufacturer's cost-effective alternative to most common fastening needs in the assembly industry. Our easy-to-use impulse wrenches and cordless screwdrivers are excellent choices when looking for an ergonomic, reliable, and repeatable solution for screw connections. The series consists of both pneumatic and battery-powered tools.
