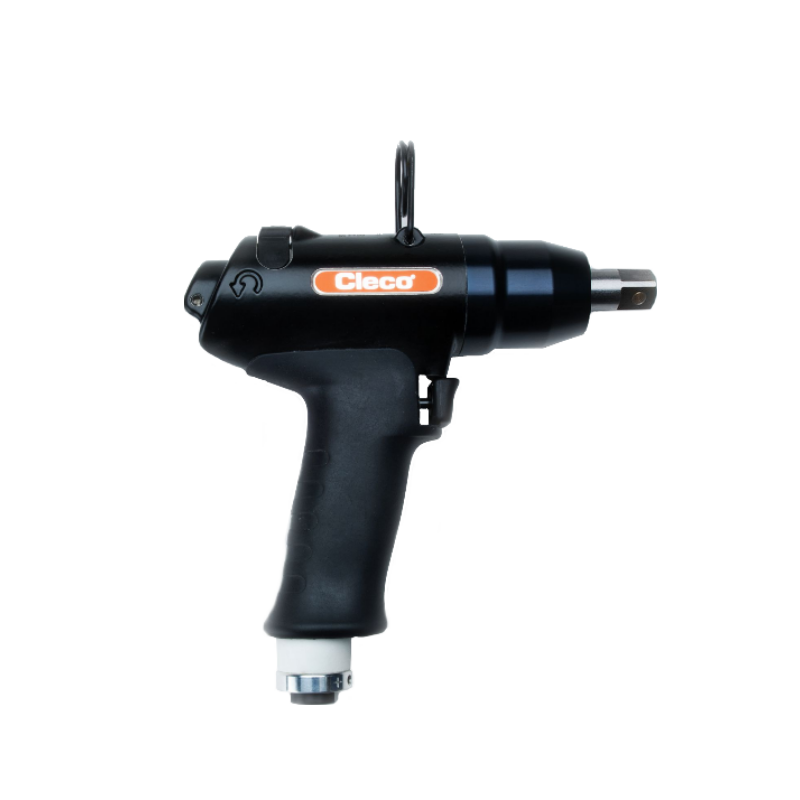

Pistol Grip Pulse Tools

Productivity has been in the focus when developing the new line. The Cleco H- and C-Series combines the legendary durability with unmatched repeatability. For this reason, you will be able to complete every joint quickly and reliably. Choose your suitable pulse tool from our comprehensive product portfolio of shut-off- and non-shut-off pulse tools. Both H-and C-Series have an excellent power-weight ratio.

  • 50% lower air consumption in free speed
  • The high precision shutoff mechanism ranges close to the characteristics of an electric tool at a tolerance of +/- 5 %
  • The powerful 3-chamber-air engine reduces the tightening time
  • Adapt the pulse rate to your joints
  • Keep an eye on the reserve oil condition with the filling indicator
  • A completely re-engineered pulse unit delivers market leading repeatability for hard and soft joints
  • The reserve oil automatically replenishes. During maintenance, you can refill it in just a few seconds
  • The leading engine design combined with the new body development provides outstanding ergonomics
  • Torque verification port for a torque verifier
Category:

Description

Models with auto shut-off
Item Drive Bolt Size (M) Torque Range (Nm) Free Speed (rpm) Weight (kg) Air Inlet Size
7PTHH35Q 1/4″ QC M5 4 – 7 3500 0,79 1/4″
11PTHH352 1/4″ SQ M6 6 – 11 3500 0,82 1/4″
11PTHH35Q 1/4″ QC M6 6 – 11 3500 0,85 1/4″
11PTHH353 3/8″ SQ M6 6 – 11 3500 0,83 1/4″
20PTHH40Q 1/4″ QC M7 10 – 20 4000 0,87 1/4″
20PTHH403 3/8″ SQ M7 10 – 20 4000 0,86 1/4″
35PTHH40Q 1/4″ QC M8 20 – 35 4000 1,05 1/4″
35PTHH403 3/8″ SQ M8 20 – 35 4000 1,05 1/4″
55PTHH403 3/8″ SQ M10 30 – 55 4000 1,15 1/4″
80PTHH35Q 7/16″ QC M12 50 – 80 3500 1,45 1/4″
80PTHH354 1/2″ SQ M12 50 – 80 3500 1,4 1/4″
110PTHH30Q 7/16″ QC M14 75 – 110 3000 1,7 1/4”
120PTHH304 1/2″ SQ M14 75 – 120 3000 1,7 1/4”
140PTHC25Q 7/16″ QC M12- 100 – 140 2500 2,6 3/8”
160PTHC256 3/4″ SQ M12- 100 – 160 2500 2,6 3/8”
250PTHFC226 3/4″ SQ M12- 160 – 250 2200 4 3/8”
400PTHFC206 3/4″ SQ M12- 250 – 400 2000 5,3 3/8”
Models without auto shut-off
Item Drive Bolt Size (M) Torque Range (Nm) Free Speed (rpm) Weight (kg) Air Inlet Size
7PHH602 1/4″ SQ M5 4 – 7 6000 0,77 1/4″
7PHH60Q 1/4″ QC M5 4 – 7 6000 0,79 1/4″
11PHH653 3/8″ SQ M6 6 – 11 6500 0,79 1/4″
11PHH652 1/4″ QC M6 6 – 11 6500 0,78 1/4″
11PHH65Q 1/4″ QC M6 6 – 11 6500 0,8 1/4″
20PHH753 3/8″ SQ M7 10 – 20 7500 0,84 1/4″
20PHH75Q 1/4″ QC M7 10 – 20 7500 0,86 1/4″
35PHH653 3/8″ SQ M8 20 – 35 6500 1,02 1/4″
35PHH65Q 1/4″ QC M8 20 – 35 6500 1,03 1/4″
55PHH603 3/8″ SQ M10 30 – 55 6000 1,12 1/4″
80PHH604 1/2″ SQ M12 50 – 80 6000 1,4 1/4″
80PHH60Q 7/16″ QC M12 50 – 80 6000 1,41 1/4″
110PHH55Q 7/16″ QC M12 75 – 110 5500 1,66 1/4”
120PHH554 1/2″ SQ M12 75 – 120 5500 1,65 1/4”
140PH45Q 7/16″ QC M12- 100 – 140 4500 2,6 3/8”
160PH456 3/4″ SQ M12- 100  – 160 4500 2,6 3/8”
250PHF406 3/4″ SQ M12- 160 – 250 4000 3,9 3/8”
400PHF356 3/4″ SQ M12- 250 – 400 3500 5,2 3/8”

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>

Product Sheet

Product Sheet (in Finnish) [PDF]
