Norbar

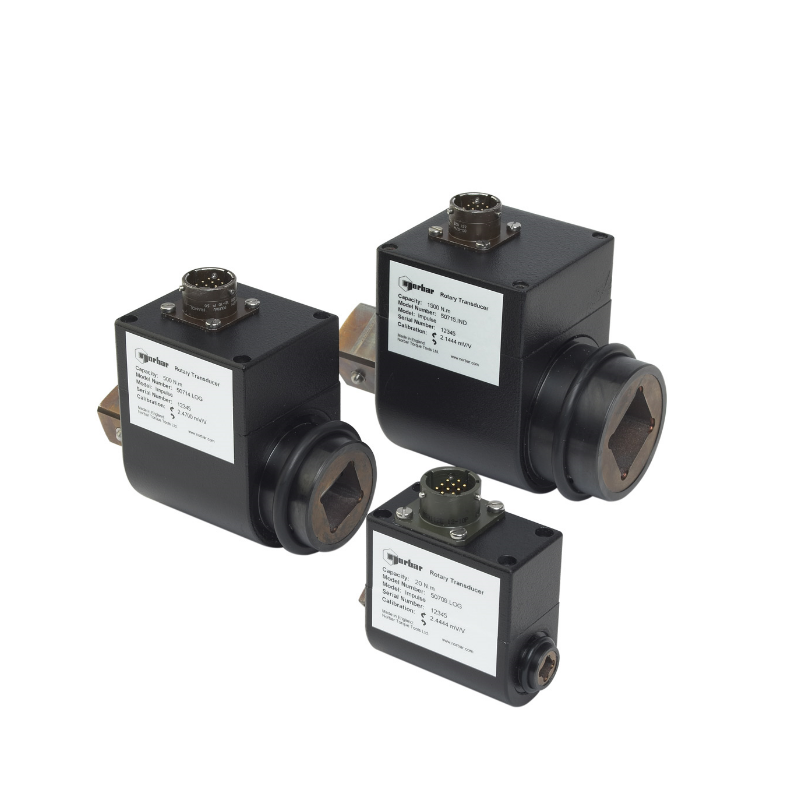

Rotary Transducers

Rotary transducers are designed to measure the torque from continuously rotating shafts such as impulse tools and certain non-impulse tools with a severe clutch action. They will also work with instruments that cannot read the memory information, by inputting the relevant calibration details manually.

  • Typically better than Class 1 for the primary classification range ±0.5% of reading from 20% to 100% of full scale
  • ‘SMART’ transducers have a built in memory circuit containing essential information about the transducer – Norbar’s instruments immediately recognize the transducer and  are ready for use
  • Supplied with a calibration certificate
  • Manufactured especially for torque controlled power tools including impulse wrenches
  • Angle measurement also available



More from Norbar >>

Description



Rotary Transduvers
Item Capacity (Nm) Drive Max. RPM – Continuous Max. RPM – Intermittent A ( mm) B (mm) C (mm) C (mm) E (mm) F (mm)
50708.xxx 5 1/4” M/F hex 5 000 11 000 30 58 116 49 26
50709.xxx 20 1/4” M/F hex 5 000 11 000 30 58 116 49 26
50710.xxx 20 1/4” M/F 5 000 11 000 30 58 72 10 33 7
50711.xxx 75 3/8” M/F 5 000 11 000 30 62 77 13 36 11
50712.xxx 200 1/2” M/F 2 500 7 600 42 67 87 16 42 15
50713.xxx 250 3/4” M/F 2 000 5 000 52 73 106 24 51 21
50714.xxx 500 3/4” M/F 2 000 5 000 52 73 106 24 51 21
50715.xxx 1500 1” M/F 1 000 4 400 63 79 125 29 61 26



Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
