Norbar

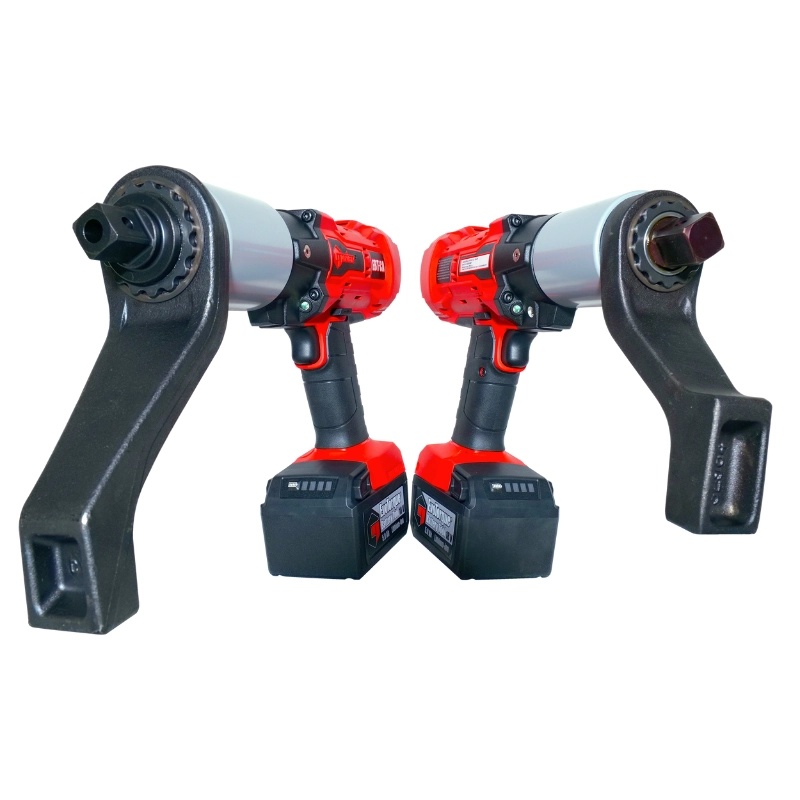

EBT-C and EBT-CA

Norbar battery torque wrenches are now available in an even more compact size. The EBT-C and -CA battery torque wrenches are based on Norbar’s reliable and renowned EBT series but more than 20 % smaller than equivalent EBT toruqe wrench. A new cooling system has been developed to fit into the smaller body without sacrificing on cooling power. These batterypowered wrenches are built to withstand even the toughest jobs and heaviest use. The gearbox is built using Norbar’s decades of experience. With the EBT-C we can achieve an accuracy of ±5% and with the EBT-CA we can reach up to an accuracy of ±3% with the use of torque and angle function. This function allows us to get more accurate tightenings and it improves repeatability at the same time.

  • The EBT-C and -CA models are based on the EBT series, but redefines what it means to be lightweight, compact and powerful.
  • Accuracy up to ±3 %.
  • Innovative cooling system prevents overheating and ensures continuous operation in demanding work conditions.
  • Sensor-controlled gearbox and joint sensing technology guarantee precise and reliable tightening every time.
  • ”Safe to Start” button reduces the risk of accidental starts, increasing work safety.
  • Powerful 18V/5.0 Ah battery provides long operating time on a single charge, making it especially suitable for demanding professional use.



More from Norbar >>

Description

EBT-C
Model Item Drive Operating range (Nm) Calibrated Range (Nm) ØD (mm) H1 (mm) H2 (mm) L (mm) R1 (mm) R2 min. (mm) R2 max. (mm) W (mm) Free Speed (rpm) Weight (kg)* Reaction arm (kg)
EBT-C 750 181473 3/4” 75 – 750 150 – 750 60 39 224 282 60 71 131 76 12,5 3,1 0,8
EBT-C 1100 181477 3/4” & 1” 110 – 1 100 220 – 1 100 68 39 224 293 69 120 165 76 9,1 3,8 1,4
EBT-CA USB
Model Item Drive Operating range (Nm) Calibrated Range (Nm) ØD (mm) H1 (mm) H2 (mm) L (mm) R1 (mm) R2 min. (mm) R2 max. (mm) W (mm) Free Speed (rpm) Weight (kg)* Reaction arm (kg)
EBT-CA 750 181474 3/4” 75 – 750 150 – 750 60 39 224 282 60 71 131 76 12,5 3,1 0,8
EBT-CA 1100 181478 3/4” & 1” 110 – 1 100 220 – 1 100 68 39 224 293 69 120 165 76 9,1 3,8 1,4
EBT-CA BLE
Model Item Drive Operating range (Nm) Calibrated Range (Nm) ØD (mm) H1 (mm) H2 (mm) L (mm) R1 (mm) R2 min. (mm) R2 max. (mm) W (mm) Free Speed (rpm) Weight (kg)* Reaction arm (kg)
EBT-CA 750 181475 3/4” 75 – 750 150 – 750 60 39 224 282 60 71 131 76 12,5 3,1 0,8
EBT-CA 1100 181479 3/4” & 1” 110 – 1 100 220 – 1 100 68 39 224 293 69 120 165 76 9,1 3,8 1,4
EBT-CA XBEE
Model Item Drive Operating range (Nm) Calibrated Range (Nm) ØD (mm) H1 (mm) H2 (mm) L (mm) R1 (mm) R2 min. (mm) R2 max. (mm) W (mm) Free Speed (rpm) Weight (kg)* Reaction arm (kg)
EBT-CA 750 181476 3/4” 75 – 750 150 – 750 60 39 224 282 60 71 131 76 12,5 3,1 0,8
EBT-CA 1100 181480 3/4” & 1” 110 – 1 100 220 – 1 100 68 39 224 293 69 120 165 76 9,1 3,8 1,4



*) Without battery and reaction arm
