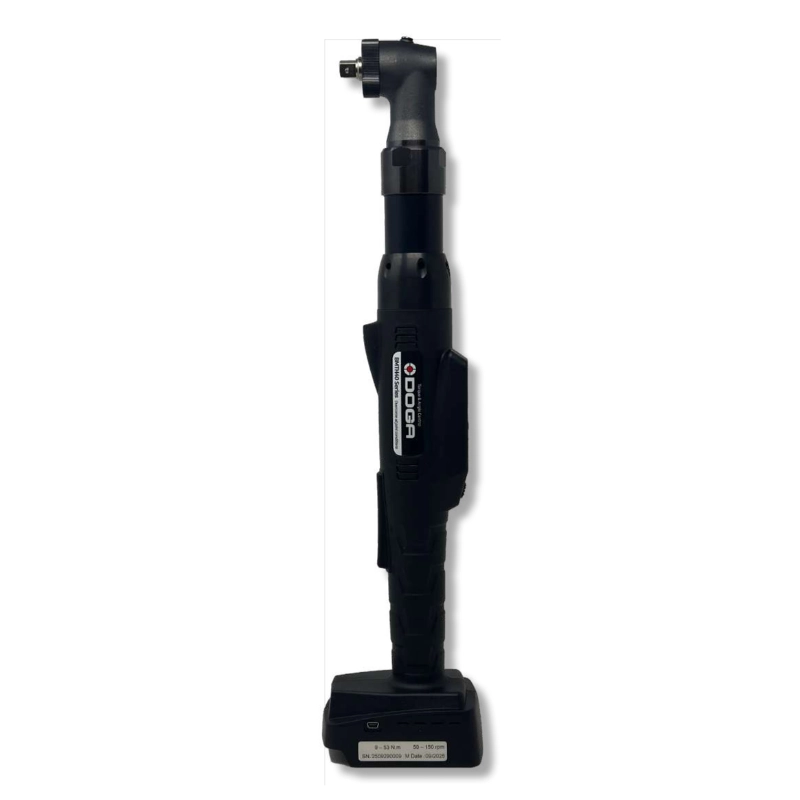

Transducerized nutrunners

Doga’s transducerized nutrunners offer an ergonomic solution for hard-to-reach areas. The transducerized nutrunners’ precise torque control ensure smooth and accurate operation. With wireless connectivity and user-friendly controls, these tools are perfect for modern industrial tasks.

Light weight and balanced design
The 32 Series wrenches feature 15 preset programs and 2 multi-step programs, while the 40 Series wrenches can be preset with up to 31 programs
Wi-Fi connectivity and multiple communication protocols
Automatic speed adjustment based on torque
Programmable directly from nutrunner, ParaMon software or via the network
Connect up to 8 nutrunners to the ParaMon-Pro X controller
Available with 1D and 2D barcode reader

Description

Pistol models
Model	Torque Range Nm	Free Speed rpm	Drive	Weight kg*	Length mm	Item
BMT3204-A	0,4 – 4,5	100 – 1 800	1/4″ QC	1	212	P116810
BMT4004-A	0,5 – 6	100 – 1 400	1/4″ QC	1,1	213	P214652
BMT3206-A	0,6 – 6,5	100 – 1 250	1/4″ QC	1,1	212	P109225
BMT4006-A	1 – 9	100 – 920	1/4″ QC	1,1	213	P214654
BMT3211-A	1,5 – 11,5	50 – 690	1/4″ QC	1,1	227	P113433
BMT3216-A	2 – 16	50 – 470	1/4″ QC	1,1	227	P116811
BMT4011-A	2 – 17	50 – 490	1/4″ QC	1,2	228	P214656
BMT4016-Q 3/8	4 – 23,5	50 – 340	3/8″ SQ	1,2	239	P214658
BMT3224-A	4 – 24	50 – 310	1/4″ QC	1,1	227	P137327
BMT3224-Q 3/8	4 – 24	50 – 310	3/8″ QC	1,1	227	P137328
BMT4020-Q 3/8	5 – 29	50 – 270	3/8″ SQ	1,2	239	P214660
BMT4024-Q 3/8	6 – 35	50 – 225	3/8″ SQ	1,2	239	P214756
BMT4036-Q 3/8	9 – 53	50 – 150	3/8″ SQ	1,2	239	P214758
BMT4045-Q 3/8	12 – 60	30 – 120	3/8″ SQ	1,4	254	P214760
BMT4064-Q 3/8	17 – 85	20 – 85	3/8″ SQ	1,4	254	P214762

Angle models
Model	Torque Range Nm	Free Speed rpm	Drive	Weight kg*	Length mm	Height mm	Item
BMTH3204-A	0,4 – 4,5	100 – 1 800	1/4″ QC	1,4	465	62	P113435
BMTH3204-Q 3/8	0,4 – 4,5	100 – 1 800	3/8″ SQ	1,4	465	57	P137329
BMTH4004-A	0,5 – 6	100 – 1 400	1/4″ QC	1,6	479	62	P214662
BMTH4004-Q 3/8	0,5 – 6	100 – 1 400	3/8″ SQ	1,6	479	56	P214680
BMTH3206-A	0,8 – 6,5	100 – 1 250	1/4″ QC	1,4	465	62	P137330
BMTH3206-Q 3/8	0,8 – 6,5	100 – 1 250	3/8″ SQ	1,4	465	57	P137331
BMTH4006-A	1 – 9	50 – 920	1/4″ QC	1,6	479	62	P214664
BMTH4006-Q 3/8	1 – 9	50 – 920	3/8″ SQ	1,6	479	56	P214686
BMTH3211-A	1,5 – 11,5	50 – 690	1/4″ QC	1,6	479	62	P113437
BMTH3211-Q 3/8	1,5 – 11,5	50 – 690	3/8″ SQ	1,6	479	57	P137332
BMTH3216-A	2 – 16	50 – 470	1/4″ QC	1,6	479	62	P113439
BMTH3216-Q 3/8	2 – 16	50 – 470	3/8″ SQ	1,6	479	57	P113441
BMTH4011-A	2 – 16	50 – 490	1/4″ QC	1,7	494	62	P214666
BMTH4011-Q 3/8	2 – 16	50 – 490	3/8″ SQ	1,7	494	56	P214692
BMTH4016-Q 3/8	4 – 23,5	50 – 340	3/8″ SQ	1,7	494	56	P214668
BMTH3224-A	4 – 24	50 – 310	1/4″ QC	1,6	479	62	P137333
BMTH3224-Q 3/8	4 – 24	50 – 310	3/8″ SQ	1,6	479	57	P113443
BMTH4020-Q 3/8	5 – 29	50 – 270	3/8″ SQ	2	504	63	P214670
BMTH4020-Q 1/2	5 – 29	50 – 270	1/2″ SQ	2	504	67	P214700
BMTH3236-Q 3/8	5 – 32	50 – 200	3/8″ SQ	1,7	493	63	P113445
BMTH4024-Q 3/8	6 – 35	50 – 225	3/8″ SQ	2,1	504	63	P214672
BMTH4024-Q 1/2	6 – 35	50 – 225	1/2″ SQ	2,1	504	67	P214706
BMTH3245-Q 3/8	6 – 40	50 – 160	3/8″ SQ	1,7	508	63	P113447
BMTH3245-Q 1/2	6 – 40	50 – 160	1/2″ SQ	1,7	508	67	P137334
BMTH4030-Q 3/8	7,5 – 41	50 – 175	3/8″ SQ	2,1	506	63	P214676
BMTH4030-Q 1/2	7,5 – 41	50 – 175	1/2″ SQ	2,1	506	67	P214718
BMTH3264-Q 3/8	8 – 50	50 – 115	3/8″ SQ	1,9	508	63	P109227
BMTH3264-Q 1/2	8 – 50	50 – 115	1/2″ SQ	1,9	508	67	P113449
BMHT4036-Q 3/8	9 – 53	50 – 150	3/8″ SQ	2	504	63	P214674
BMHT4036-Q 1/2	9 – 53	50 – 150	1/2″ SQ	2	504	67	P214712
BMHT4045-Q 1/2	12 – 60	30 – 120	1/2″ SQ	2,2	525	62	P214722
BMHT4057-Q 1/2	15 – 74	25 – 90	1/2″ SQ	2,2	525	62	P214726
BMHT4067-Q 1/2	17,5 – 88,5	20 – 80	1/2″ SQ	2,2	552	70	P214736
BMHT40120-Q 1/2	33 – 120	5 – 45	1/2″ SQ	2,7	564	70	P214112

*) Without battery

Product Sheet

Product sheet 🇬🇧 | 🇫🇮

Brand

DOGA

DOGA

French screwdriver manufacturer DOGA has more than 70 years of solid experience as a reliable partner for companies in the electronics industry. The company's advanced DC and current-controlled screwdrivers cover models from a few newton meters to very small options of even 0.04 Nm. In addition to its versatile range of screwdrivers and torque arms, DOGA is also particularly valued for its first-class and customer-oriented service. Visit manufacturer's website >>
