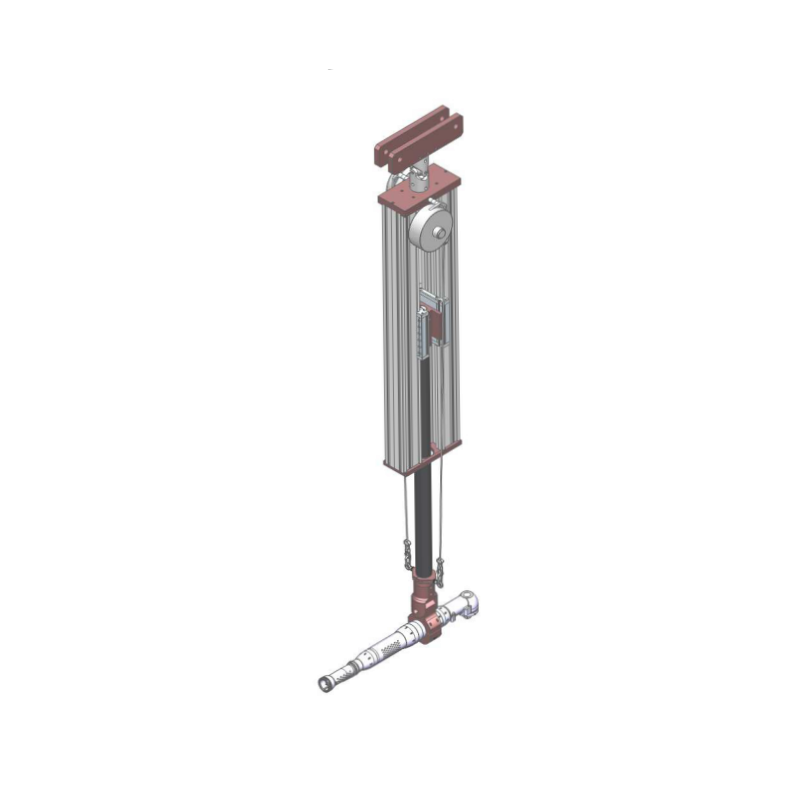

Suspended Torque Reaction Arms

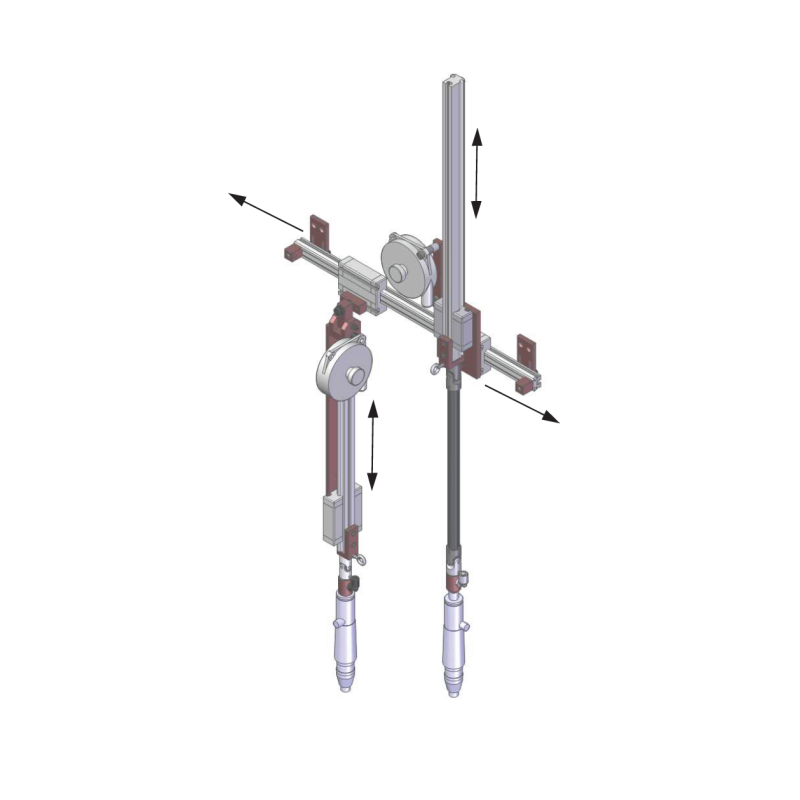

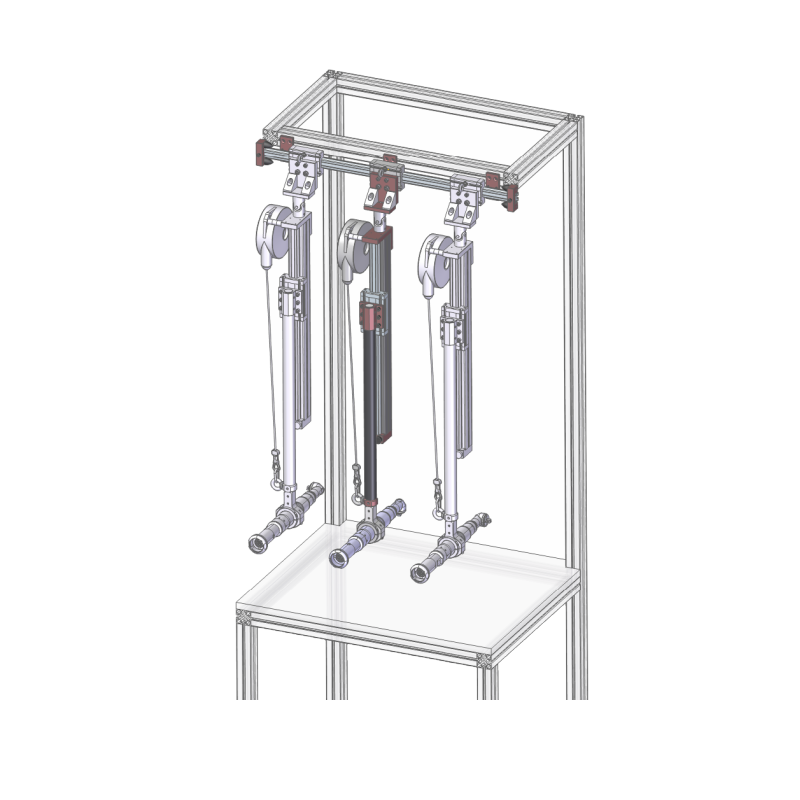

Slider series torque arms are ideal solutions to cramped and congested workstations. Suspended on a fixed chassis or a rail they free workspace – and as easy to install and compact they streamline your screwing operations and optimize operator comfort. Connected to a horizontal rail they become the most ergonomic solution on line.

The arms can be designed completely according to the requirements of work station
Wide range of accessories available such as clamps, rail links and balancing kits
Flexible Slider and BA series combination solutions available

Description

Suspended Torque Reaction Arms
Item	Max. Torque (Nm)	Clamping Ø (mm)	Vertical Stroke (mm)	Working Radius (mm)	Max. Load (kg)	Part No.
SLIDER 08	8	1/4” G	450	100	1,2	4-5283148
SLIDER 08 COMPACT	8	1/4” G	250	150	1,2	4-5283150
SLIDER 20	20	1/4” G	450	100	2,2	4-5283149
SLIDER 50 COMPACT 470	50	32 – 52	450		3	4-5283154
SLIDER 50 COMPACT 670	50	32 – 52	650		3	4-5283155
SLIDER 50 COMPACT 870	50	32 – 52	850		3	4-5283156
SLIDER 150 COMPACT 600	150	Max 63	600		5	4-5283113
SLIDER 150 COMPACT 800	150	Max 63	800		5	4-5283114
SLIDER 150 COMPACT 1000	150	Max 63	1000		5	4-5283115
SLIDER 300 COMPACT	300	On request	On request	On request	On request	On request
