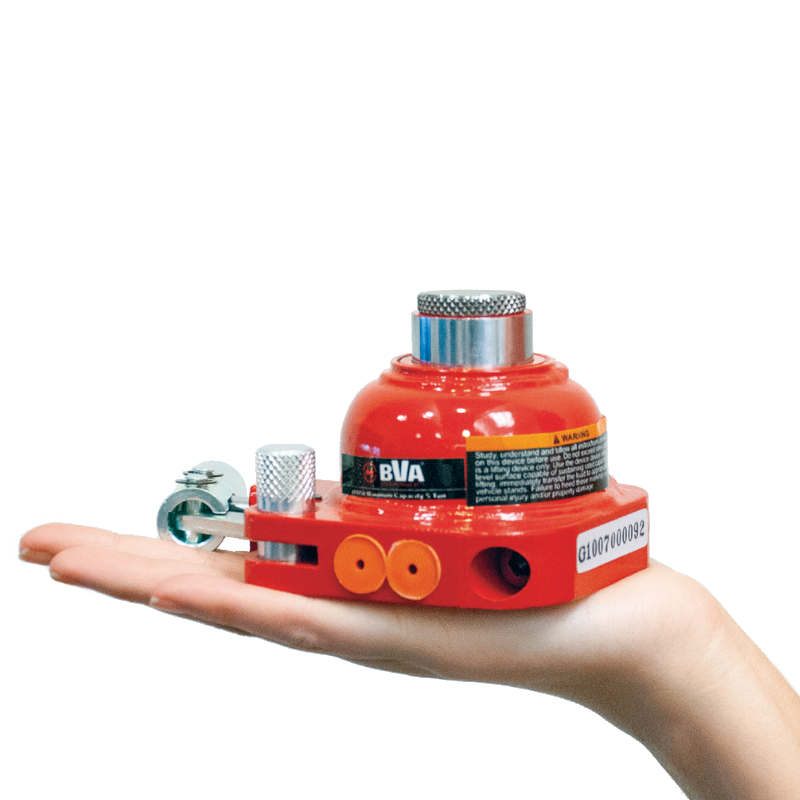

BVA mini jacks are sure choices for working in extremely narrow and cramped spaces. The small-sized mini jacks are well suited not only for lifting and supporting, but also for situations requiring low spreading force. The compact mini jacks can be used without a separate pump unit.
More from BVA Hydraulics >>
| Mini Jacks | ||||||
| Item | Capacity (tn) | Hydraulic Lifting (mm) | Min. Height (mm) | Max. Height (mm) | Base Size L x W (mm) | Weight (kg) |
| J11050 | 5 | 20 | 65 | 80 | 124 x 116 | 2,1 |
| J11055 | 5 | 38 | 85 | 123 | 124 x 116 | 2,4 |
| J11100 | 10 | 41 | 122 | 163 | 125 x 112 | 5,7 |
| J11200 | 20 | 41 | 130 | 171 | 137 x 122 | 7,6 |
