ISO 1500

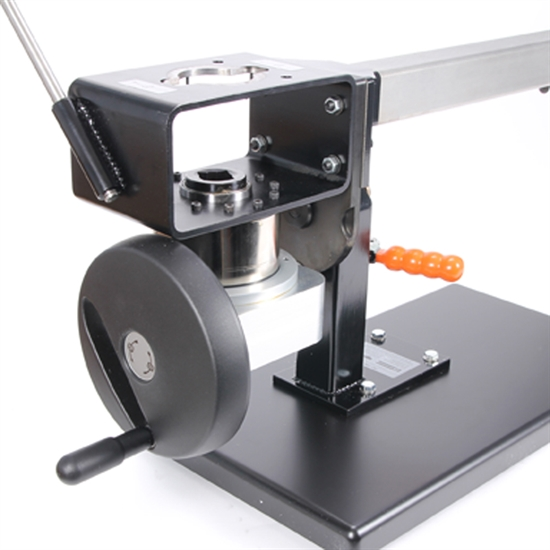

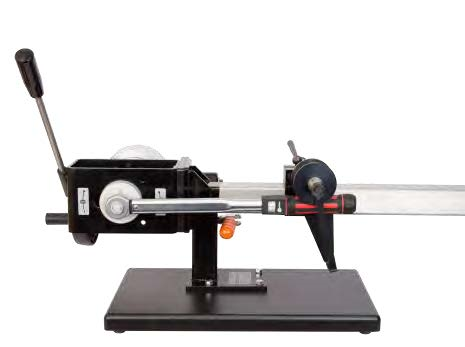

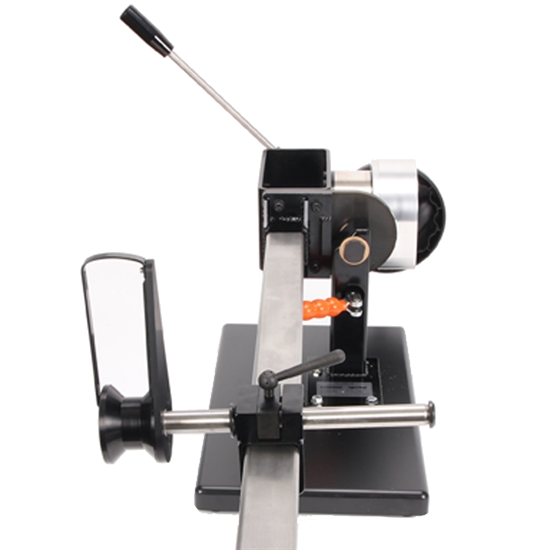

TORQUE WRENCH LOADER

The ISO 1500 Torque Loader allows torque wrenches to be calibrated or tested in accordance with ISO6789.2017 and American military standard GGG-W-686. Loader’s function is to take full advantage of the accuracy of Norbar’s torque measuring system by reducing operator induced variations in the calibration process. Motorized version with speed control is available for the ISO 1500 which can be purchased as a kit to motorize an existing ISO or as a complete ISO 1500 Motorized Torque Wrench Tester.

  • The high ratio, 1200:1 (ISO 3000, 1250:1) gearbox allows high torques to be applied, whilst ensuring that the operator does not exceed the rate of increase of torque specified in the standards
  • The design allows easy interchanging of Norbar Static Transducers
  • Floating reaction point minimises side loads on wrench
  • 90° facility allows performance of torque wrenches to be checked in two planes. Many wrenches give different torque values according to their orientation in use

Description

ISO 1500 torque wrench loader
Item Model Torque Range (Nm) Min. Length (mm) Max. Length (mm) Adaptors
60118 Mechanic loader 1 – 1500 200 1200 1/4, 3/8, 1/2, 3/4
60119 Motorised loader 1 – 1500 200 1200 1/4, 3/8, 1/2, 3/4



Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
