DOTCO-tarkkuushiomakoneet
Precision Grinders - Image 2
Cleco tarkkuushiomakone
DOTCO

Precision Grinders

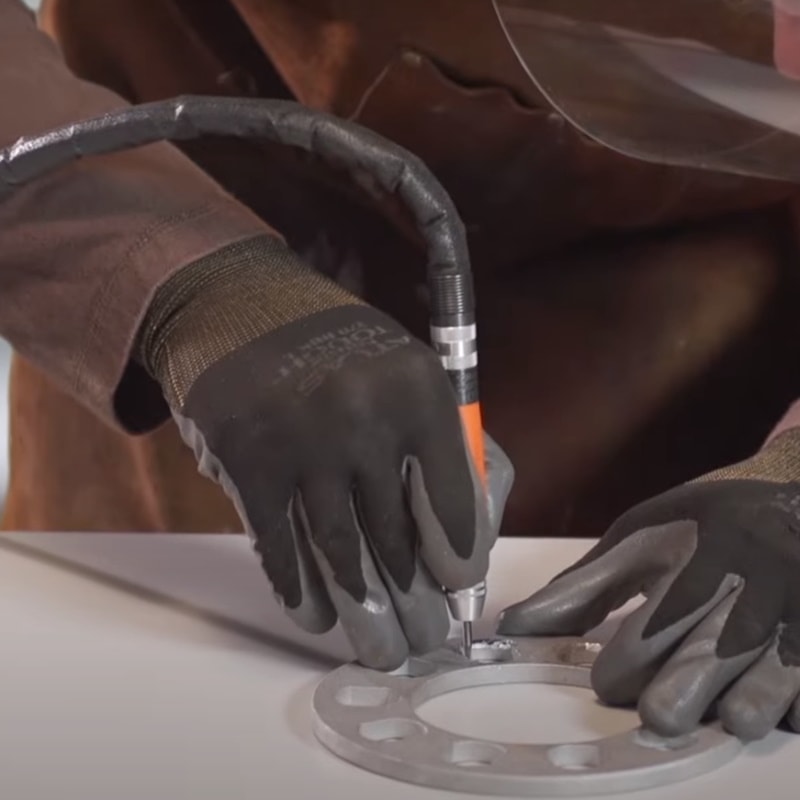

Dotco’s pneumatic precision grinders have become the industry standard for quality and versatility. Trim, ergonomic design enables excellent control and makes even the smallest and lightest tools to withstand in harsh environments. High-quality industrial bearings guarantee grinders a long life.

  • 0.1 hp (0.074 kW) motor on 10-04 and 10-04 series
  • 0.4 hp (0.29 kW) motor on 12LF series
  • Compact and light weight composite housing
  • Roll throttle equipped



More from Dotco >>

Category:

Description

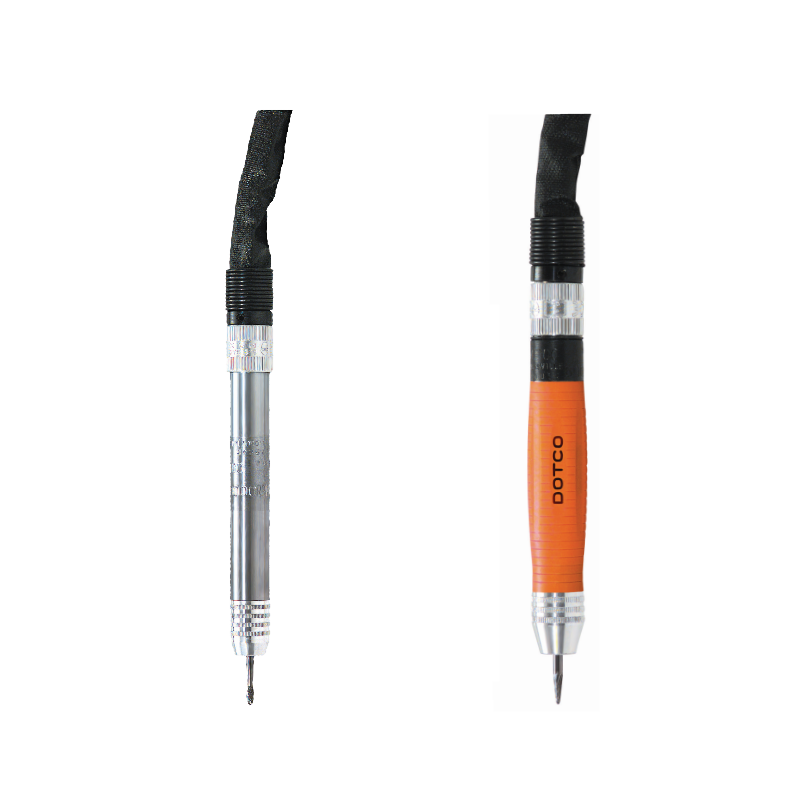

10-04 Series Inline Precision Grinders
Item Collet Size Exhaust Free Speed (rpm) Wire Length (m) Abrasive Capacity Weight (kg) Length (mm) Air Inlet Size
10R0400-13 3 mm Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
10R0401-13 3 mm Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
10R0401-18 1/8” Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
10R0401-43 3 mm Rear 60 000 1,2 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12-04 Series Inline Precision Grinders
Item Collet Size Exhaust Free Speed (rpm) Wire Length (m) Abrasive Capacity Weight (kg) Length (mm) Air Inlet Size
12R0400-13 3 mm Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12R0400-18 1/8” Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12R0400-43 3 mm Rear 60 000 1,2 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12R0410-13 3 mm Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12R0410-16 3/32” Rear 60 000 0,3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12R0410-18 1/8″ Rear 60 000 0.3 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”
12R0410-43 3 mm Rear 60 000 1,2 1/4″ Carbide Burr, 1/4″ Diamond Pin 0,1 147,3 1/8”

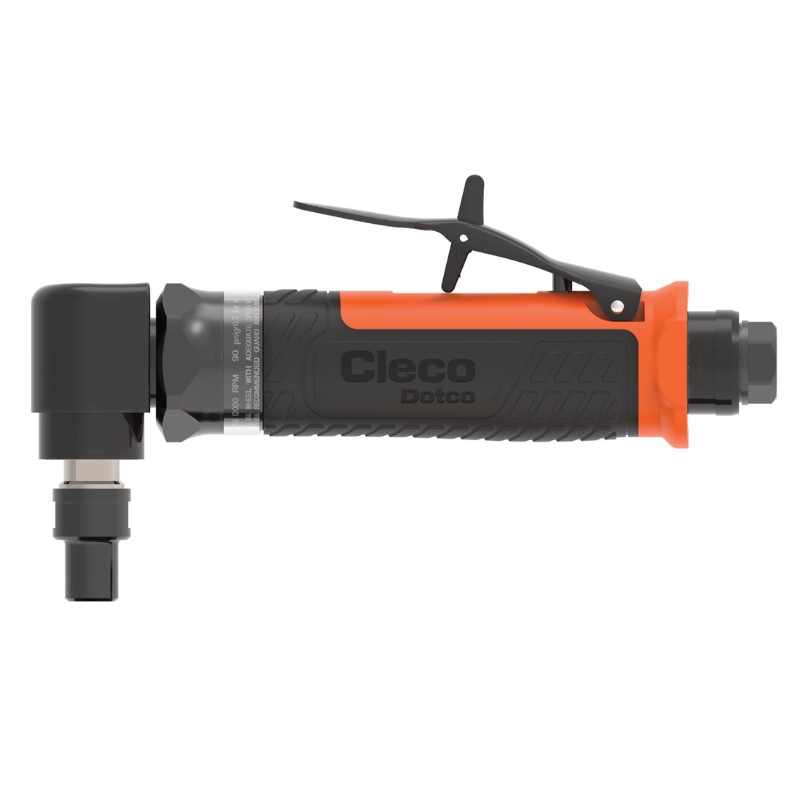

12LF Series Right Angle Precision Grinders
Item Collet Size Exhaust Free Speed (rpm) Abrasive Capacity Weight (kg) Length (mm) Air Inlet Size
12LF280-32 1/4″-28i Rear 12 000 1/2″ Carbide Bur, 1″ Mounted Wheel 0.5 167.6 1/4″
12LF281-32 1/4″-28i Rear 20 000 1/2″ Carbide Bur, 1″ Mounted Wheel 0.5 167.6 1/4″
12LF281-36M6OH 6mm Rear 20 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF280-36M6OH 6mm Rear 12 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF280-32OH 1/4″-28i Rear 12 000 1/2″ Carbide Bur, 1″ Mounted Wheel 0.5 167.6 1/4″
12LF281-32OH 1/4″-28i Rear 20 000 1/2″ Carbide Bur, 1″ Mounted Wheel 0.5 167.6 1/4″
12LF200-32 1/4″-28i Front 12 000 3″ (75 mm) Sanding/ Polishing disc 0.5 168 1/4″
12LF200-36 1/4″ Front 12 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF280-36 1/4″ Rear 12 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF201-32 1/4″-28i Front 20 000 2″ (50 mm) Sanding/ Polishing disc 0.5 168 1/4″
12LF200-36M6 6mm Front 12 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF280-36M6 6mm Rear 12 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF280-27 3/8″-24e Rear 12 000 3″ (75 mm) Sanding/ Polishing disc 0.5 168 1/4″
12LF280-45 1/4″ Rear 12 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF201-36 1/4″ Front 20 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF201-36M6 6mm Front 20 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF281-36 1/4″ Rear 20 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″
12LF281-36M6 6mm Rear 20 000 1/2″ Carbide Burr, 1″ Mounted Wheel 0.5 168 1/4″

Brand

Dotco

Dotco

Dotco's advanced pneumatic grinders and drills are designed to withstand even the most challenging environments. Precisely machined, balanced parts of material removal tools minimize vibration and thus guarantee productivity and ergonomics. As a registered trademark of Apex Tool Group, Dotco tools are about to integrate with the Cleco brand in the near future. Visit manufacturer's website >>
DOTCO

Product Sheet

Product Sheet [PDF] Tuotekortti [PDF]
